Safety luminaire IP65-rated for high illumination.
Sturdy rectangular design with high-performance power LED.
Easy to install thanks to quick-connect terminal blocks.
Available with optic for escape route and wide area illumination.
The luminaire is equipped with 4 x 3 W power LEDs.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 1 kg |
|---|---|
| Nominal input voltage (V) | 230 V 50/60 Hz |
| System | NRG BUS DALI 2 |
| Insulation class | II |
| Compliance | CE, UKCA |
| IP rating | IP65 |
| IK rating | IK04 |
| EN 1838 | EN 1838 |
| Glow wire test | 850 °C – 30s |
| Mounting luminaire | Surface ceiling |
| Warranty | 5 Years, 10 Years |
| Emergency duration (h) | 3 |
| Battery | LiFePO4 6.4 V 6.4 Ah |
| Nominal flux (lm) | Optic W 1000 |

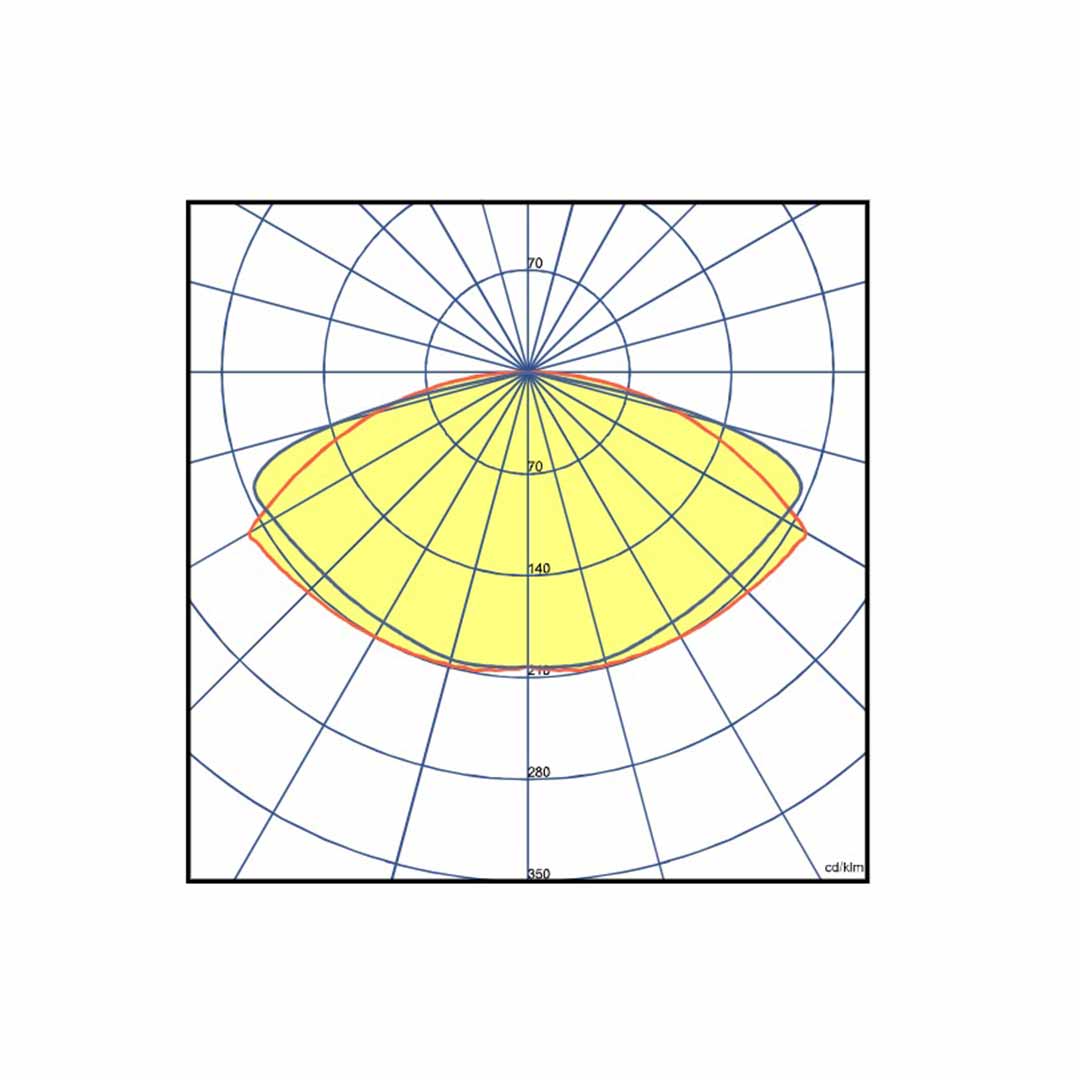

| Polar curve image | YES |
| Power consumption AC (W) | Max. 5 |
| Charging times (h) | 24 |
| Mode of operation | Non-maintained |
| Colour temperature (°K) | 5000 |
| Service life L80B20 | 50000 |
| Colour | RAL 9003 |
| Material | PC |
| Operating temperature (°C) | 0 to +40 |
