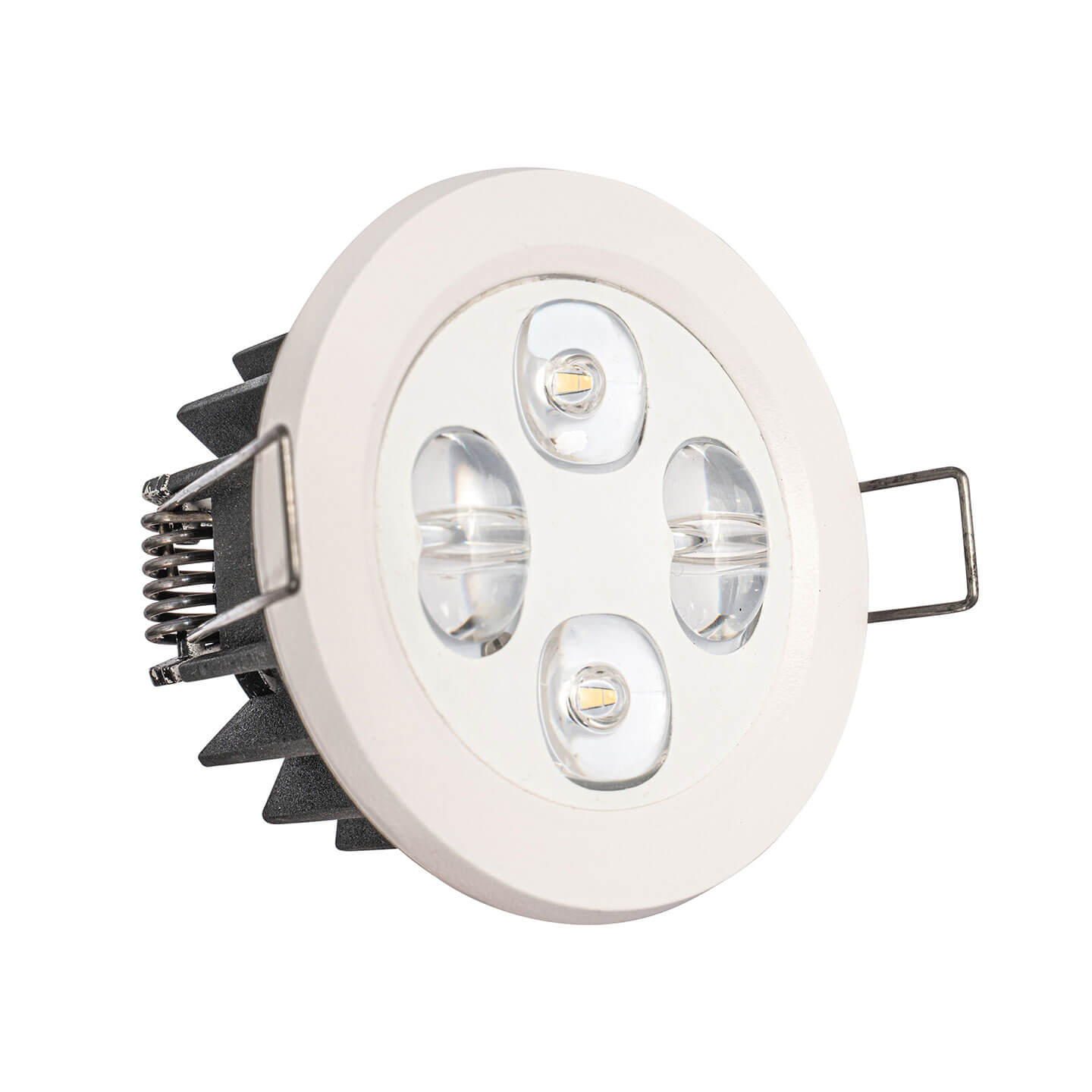

Safety IP65 luminaire designed for recessed ceiling mounting with high lumen output.
Automotive-grade CSP LEDs with a rotating system for dual lenses, designed for use in escape routes and wide areas.
Quick-connect terminal blocks make installation easy.
Luminaire is equipped with 2 x 3 W power LED.
Exilux’s fully automatic self-testing NRG BUS or NRG ZB system complies with BS EN 62034 and is incorporated into all emergency lighting models.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 0.52 kg |
|---|---|
| Nominal input voltage (V) | 230 V 50/60 Hz |
| System | NRG BUS DALI 2 |
| Insulation class | II |
| Compliance | CE, UKCA |
| Emergency duration (h) | 3 |
| IP rating | IP65 |
| IK rating | IK04 |
| EN 1838 | EN 1838 |
| Glow wire test | 850 °C – 30s |
| Mounting luminaire | Recessed ceiling |
| Warranty | 5 Years, 10 Years |
| Battery | LiFePO4 6.4 V 3.2 Ah |
| Nominal flux (lm) | Optic E 560 – Optic W 580 |

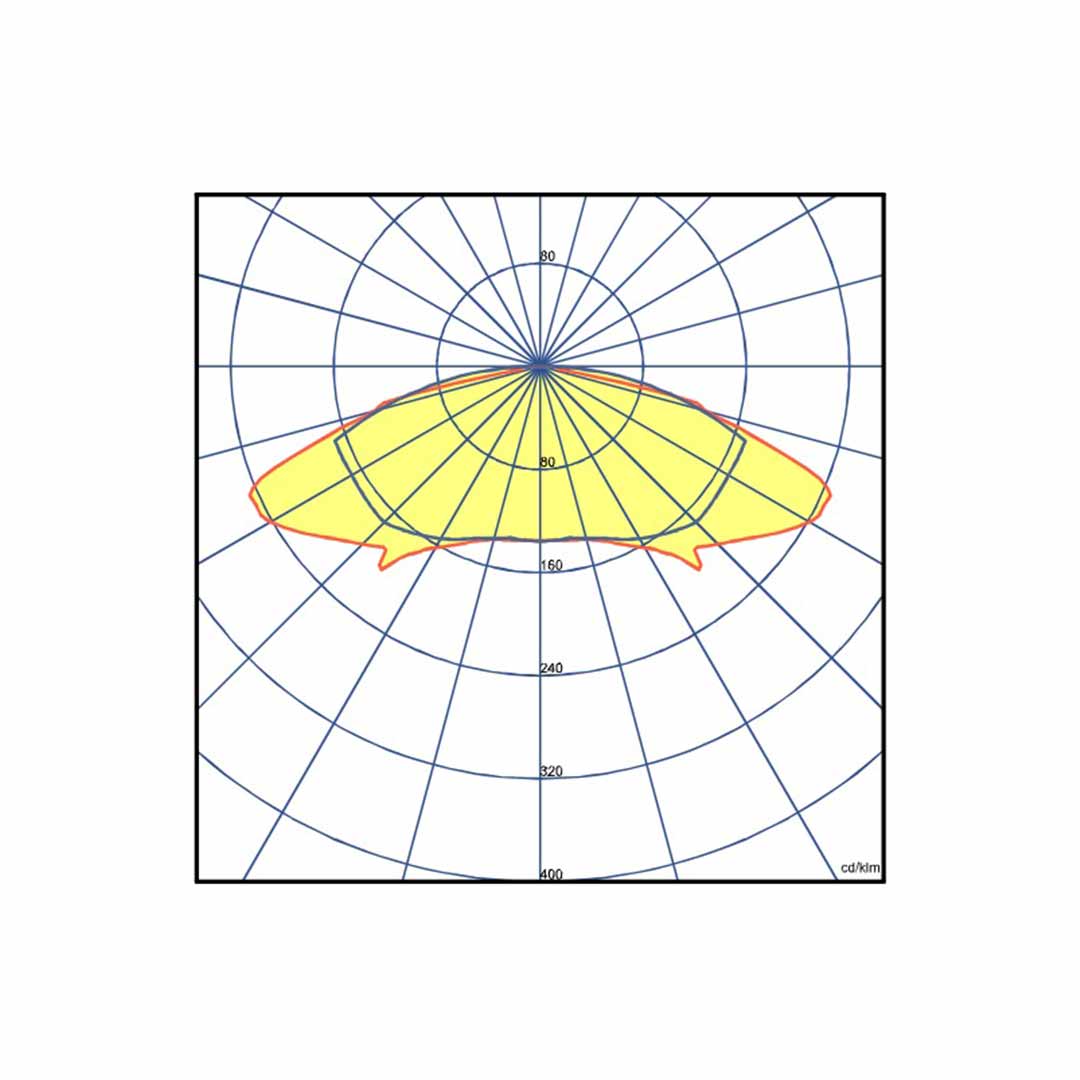

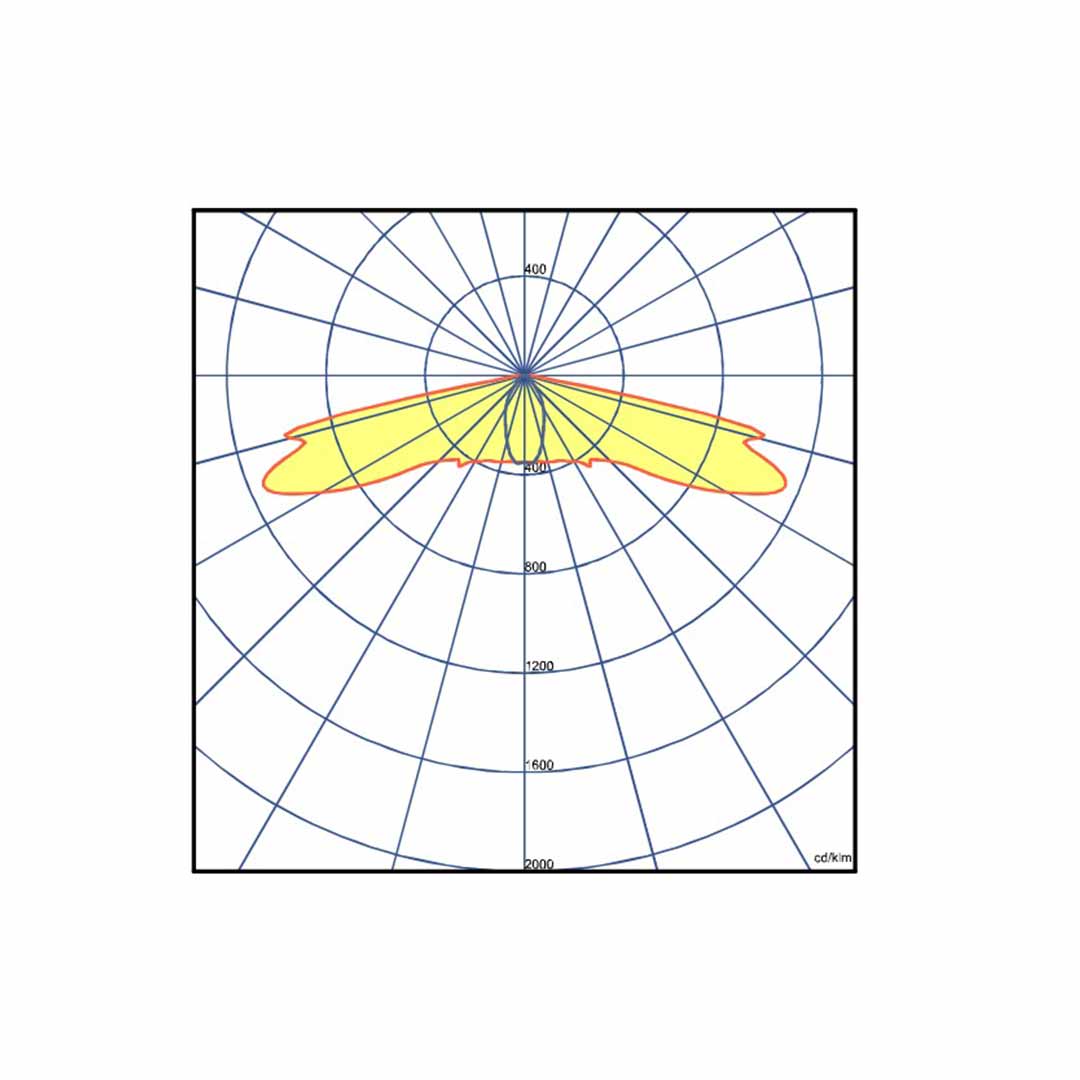

| Polar curve image | YES |
| Power consumption AC (W) | Max. 11.6 |
| Charging times (h) | 24 |
| Mode of operation | Maintained, Non-maintained |
| Colour temperature (°K) | 5000 |
| Service life L80B20 | 50000 |
| Colour | RAL 9003 |
| Material | PC |
| Operating temperature (°C) | 0 to +45 |
