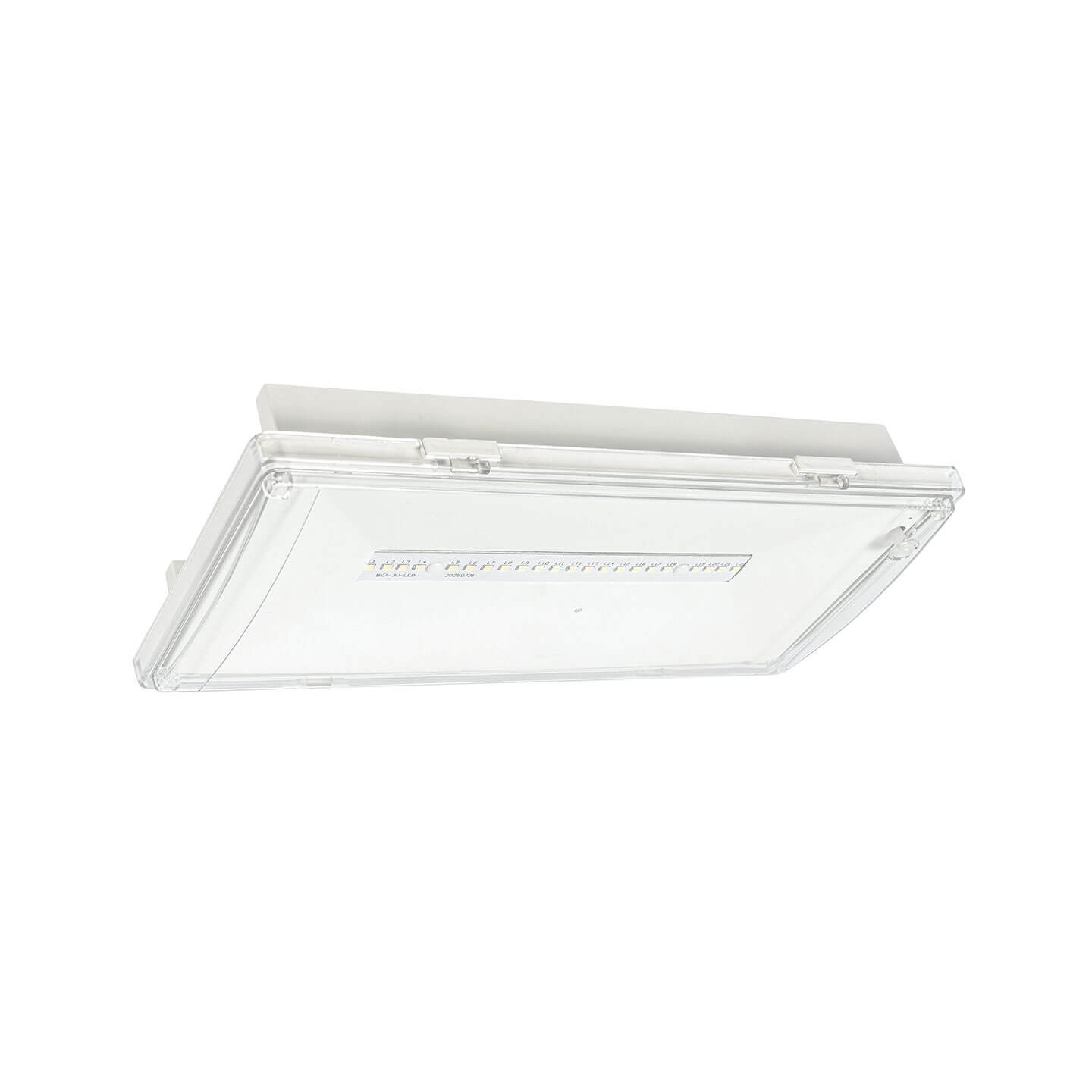

Safety luminaire with an IP65 rating, suitable for mounting on walls, ceilings and recessed.
Non-obstructive design and slim housing, battery pack replacement and installation are easy thanks to quick-connect terminal blocks.
Luminaire is equipped with 4 W strip LED.
Exilux’s fully automatic self-testing NRG BUS or NRG ZB system complies with BS EN 62034 and is incorporated into all emergency lighting models.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 0.8 kg |
|---|---|
| Nominal input voltage (V) | 230 V 50/60 Hz |
| System | NRG BUS DALI 2 |
| Insulation class | II |
| Compliance | CE, UKCA |
| IP rating | IP65 |
| IK rating | IK10 |
| Glow wire test | 850 °C – 30s |
| EN 1838 | EN 1838 |
| Mounting luminaire | Recessed ceiling, Recessed wall, Surface ceiling, Surface wall |
| Warranty | 5 Years, 10 Years |
| Environments | Cold |
| Battery | LiFePO4 6.4 V 3.2 Ah |
| Nominal flux (lm) | 500 |
| Emergency duration (h) | 3 |

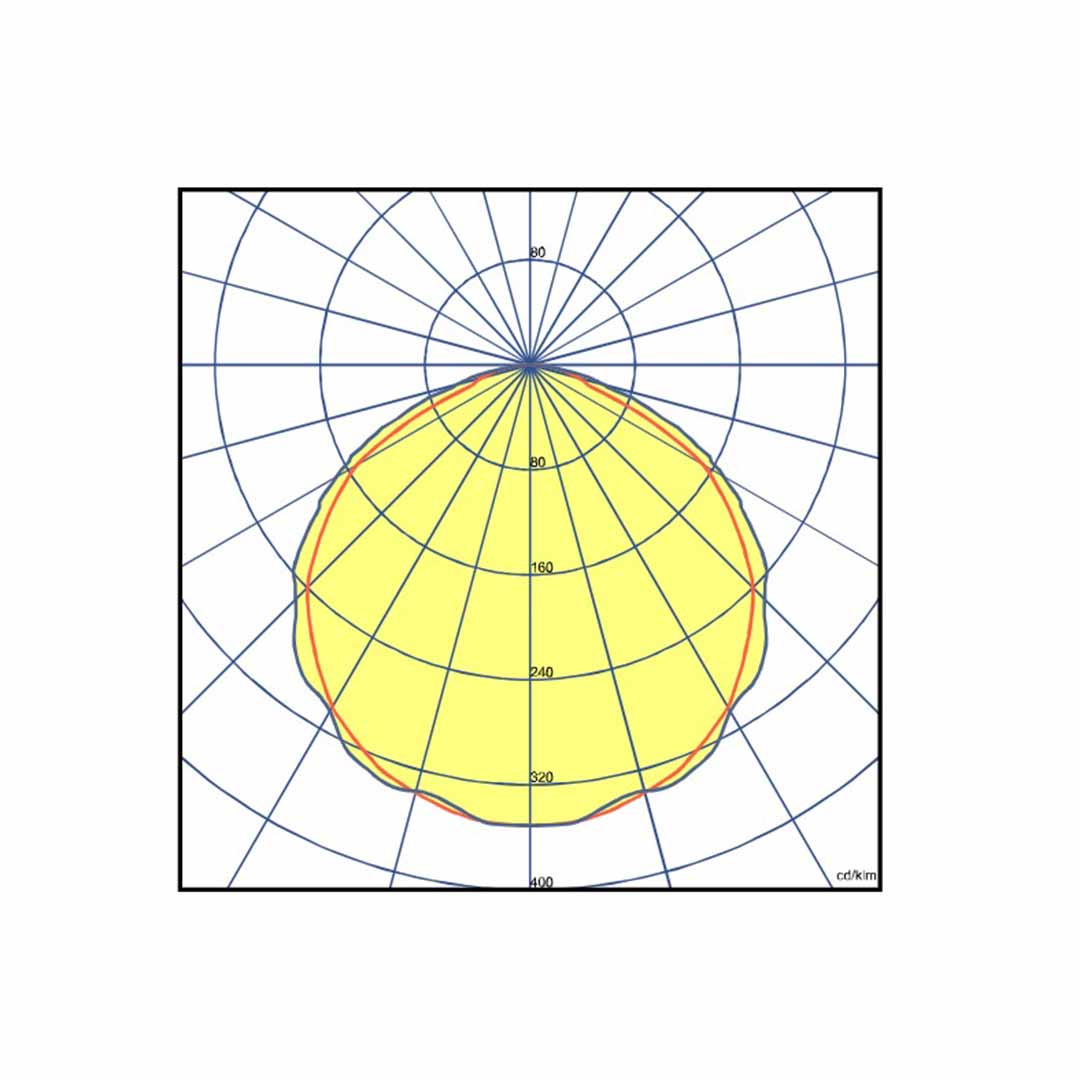

| Polar curve image | YES |
| Power consumption AC (W) | Max. 4 |
| Charging times (h) | 24 |
| Mode of operation | Non-maintained |
| Colour temperature (°K) | 5000 |
| Service life L80B20 | 50000 |
| Colour | RAL 9003 |
| Material | PC |
| Operating temperature (°C) | -30 to +50 |
