Safety wall luminaire IP66-rated for lighting escape routes, both indoors and outdoors.
A square design emergency luminaire with high-performance power LEDs.
Easy to install thanks to quick-connect terminal blocks.
The luminaire is equipped with 2 x 3 W power LED.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 1.7 kg |
|---|---|
| Nominal input voltage (V) | 230 V 50/60 Hz |
| System | NRG BUS DALI 2 |
| Insulation class | I |
| Compliance | CE, UKCA |
| IP rating | IP66 |
| IK rating | IK07 |
| EN 1838 | EN 1838 |
| Glow wire test | 960 °C – 30s |
| Mounting luminaire | Surface wall |
| Warranty | 5 Years, 10 Years |
| Environments | Cold |
| Emergency duration (h) | 3 |
| Battery | LiFePO4 6.4 V 3.2 Ah |
| Nominal flux (lm) | 550 |

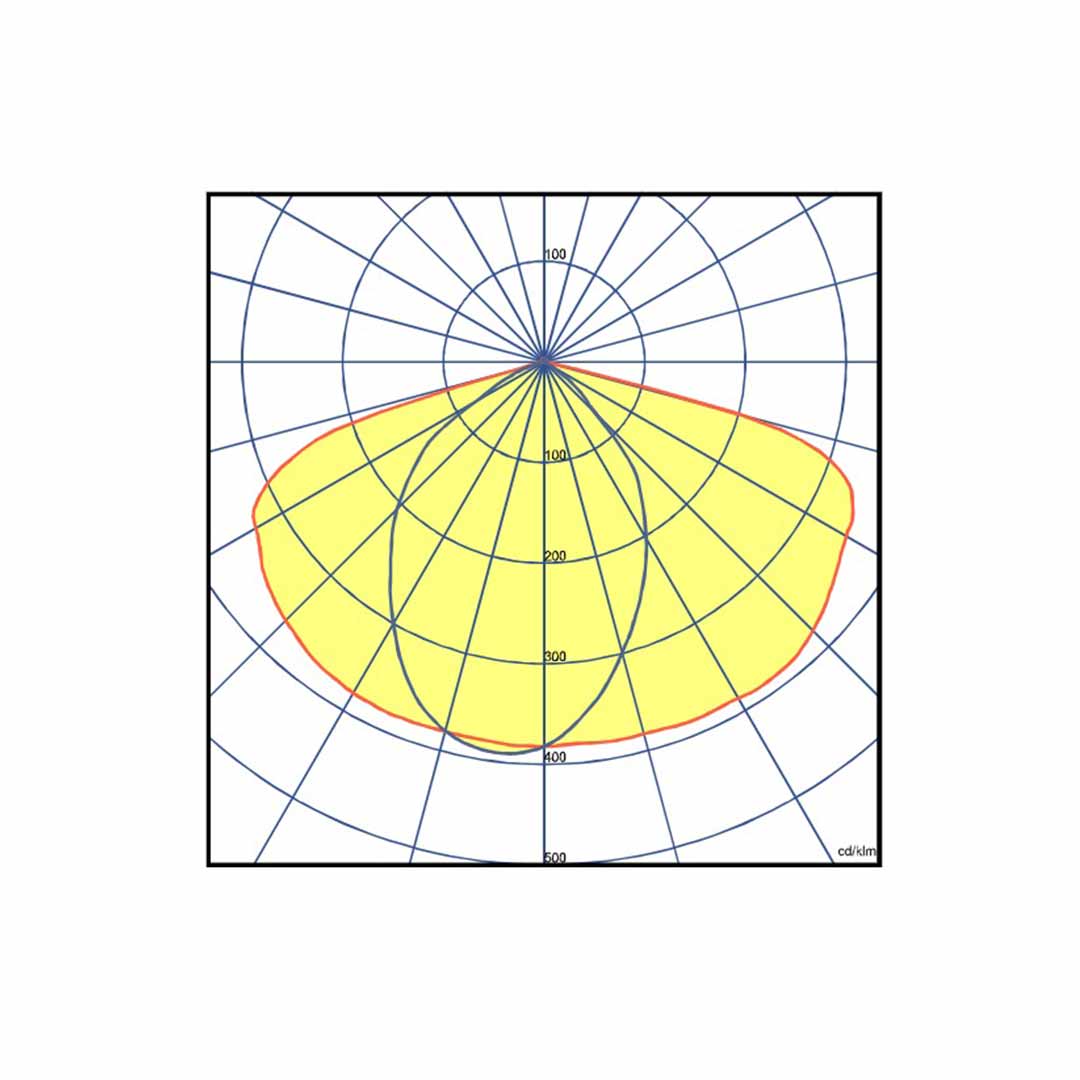

| Polar curve image | YES |
| Power consumption AC (W) | Max. 11.6 |
| Charging times (h) | 24 |
| Mode of operation | Maintained, Non-maintained |
| Colour temperature (°K) | 5000 |
| Service life L80B20 | 50000 |
| Colour | RAL 9005 |
| Operating temperature (°C) | -30 to +45 |
