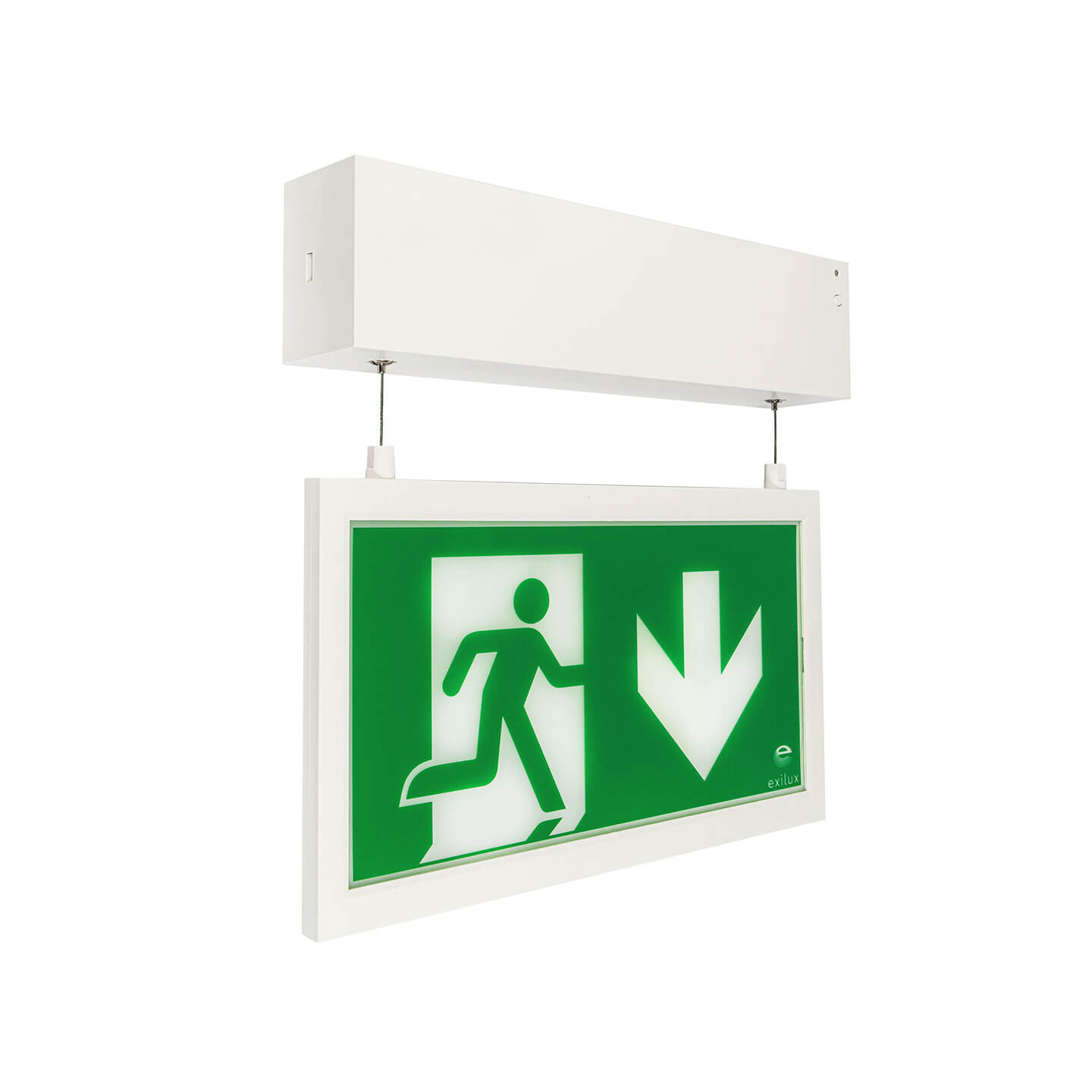

Exit sign luminaire with quick connection and easy installation.
It provides excellent light homogeneity on the pictogram.
The luminaire can be used universally for ceilings, recessed ceiling and wall mounting.
Luminaire is equipped with a 2.8 W strip LED.
Exilux’s fully automatic self-testing NRG BUS or NRG ZB system complies with BS EN 62034 and is incorporated into all emergency lighting models.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 1.4 kg |
|---|---|
| Nominal input voltage (V) | 230 V 50/60 Hz |
| System | NRG BUS DALI 2 |
| Insulation class | II |
| Compliance | CE, UKCA |
| IP rating | IP40 |
| IK rating | IK04 |
| Viewing distance | 24 m |
| Glow wire test | 850 °C – 30s |
| Mounting exit sign | Recessed ceiling, Surface ceiling, Surface wall, Suspended ceiling, Wall bracket |
| Emergency duration (h) | 3 |
| Battery | LiFePO4 3.2 V 3.2 Ah |
| Power consumption AC (W) | Max. 4 |
| Charging times (h) | 24 |
| Mode of operation | Maintained, Non-maintained |
| Colour temperature (°K) | 5700 |
| Service life L80B20 | 50000 |
| Colour | RAL 9003 |
| Material | ABS |
| Operating temperature (°C) | 0 to +40 |
