Exit sign or safety luminaire with an IP65 rating, suitable for mounting on walls, ceilings and recessed.
Non-obstructive design and slim housing, easy installation thanks to quick-connect terminal blocks.
Luminaire is equipped with 2 W strip LED.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 0.52 kg |
|---|---|
| System | NRG+ |
| Insulation class | II |
| Compliance | CE, UKCA |
| IP rating | IP65 |
| IK rating | IK10 |
| Viewing distance | 24 m – 30 m |
| EN 1838 | EN 1838 |
| Glow wire test | 850 °C – 30s |
| Mounting exit sign | Recessed ceiling, Recessed wall, Surface ceiling, Surface wall |

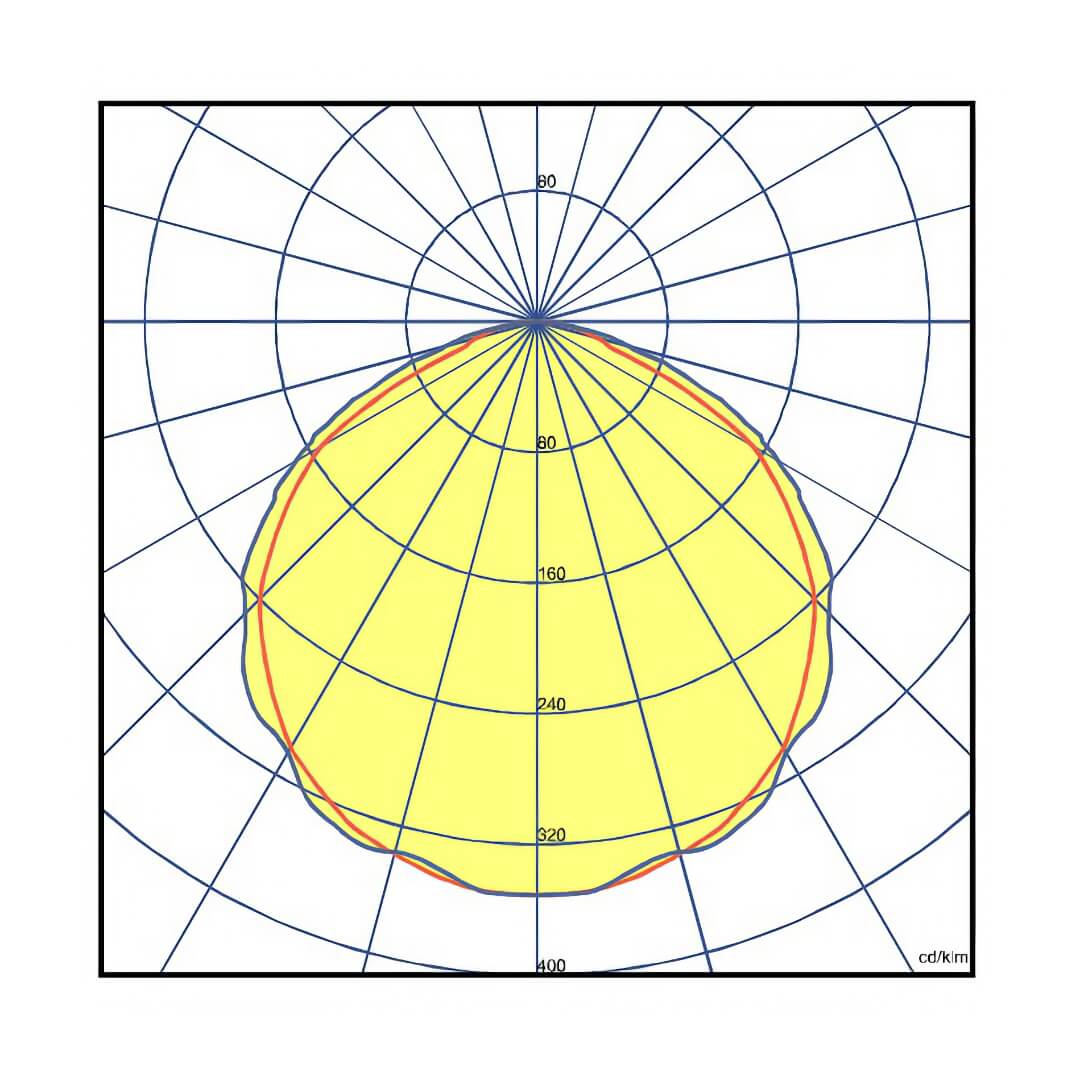

| Polar curve image | YES |
| Power consumption DC (mA / W) | 11 / 2.5 |
| Power consumption AC (VA) | 5.5 |
| Nominal input voltage (V) | 230 V 50/60 Hz – 220 V DC +25/-20 % |
| Nominal flux (lm) | 320 |
| Colour temperature (°K) | 5000 |
| Service life L80B20 | 50000 |
| Colour | RAL 9003 |
| Material | PC |
| Operating temperature (°C) | -10 to +40 |
