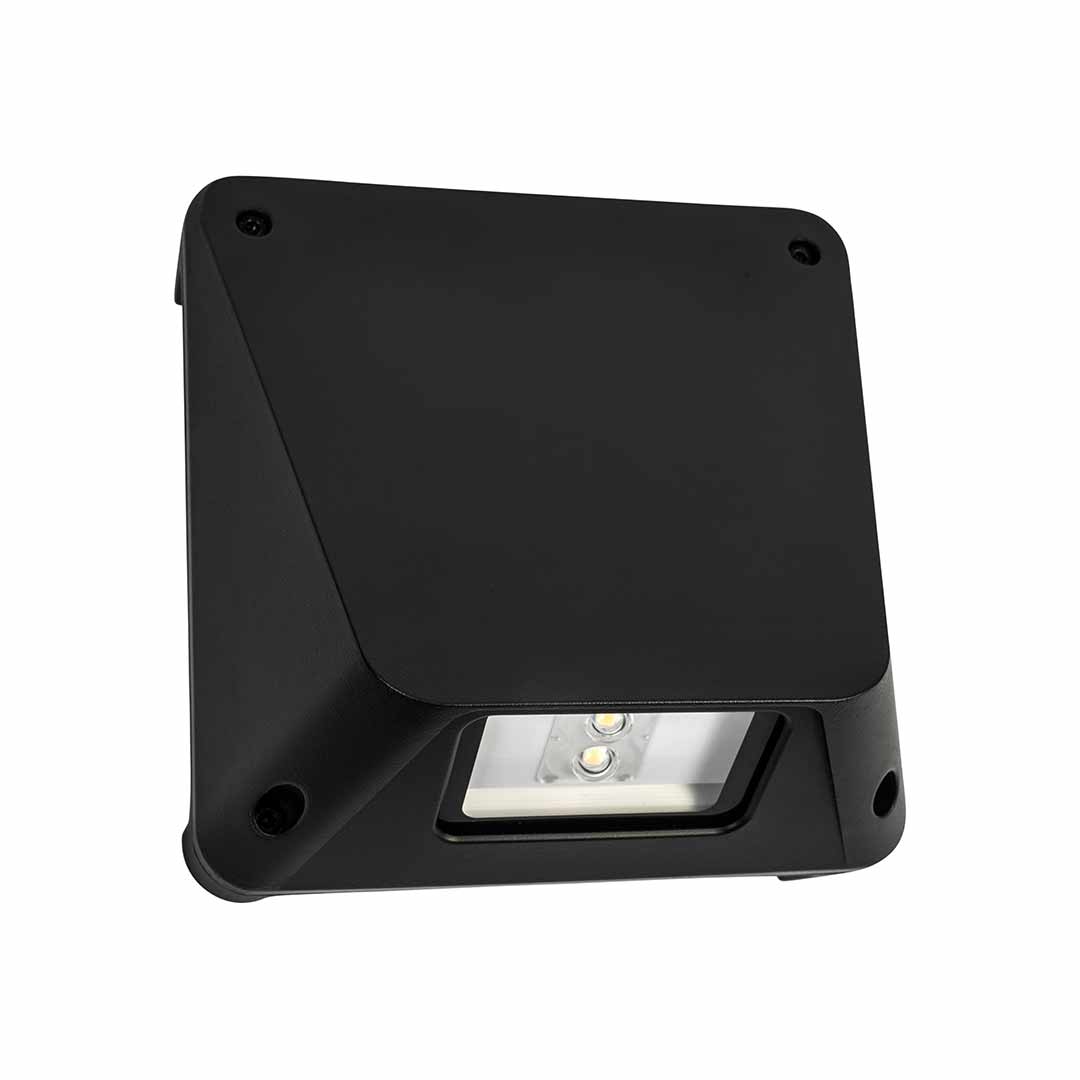

Safety wall luminaire IP66-rated for lighting escape routes, both indoors and outdoors.
Powder-coated, die-cast aluminium body with high performance power LEDs.
Easy to install thanks to quick-connect terminal blocks.
Luminaire is equipped with 2 x 3 W power LED.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 1.5 kg |
|---|---|
| System | NRG |
| Insulation class | I |
| Compliance | CE, UKCA |
| IP rating | IP66 |
| IK rating | IK07 |
| EN 1838 | EN 1838 |
| Glow wire test | 960 °C – 30s |
| Mounting luminaire | Surface wall |
| Nominal input voltage (V) | 230 V 50/60 Hz – 220 V DC +25/-20 % |
| Nominal flux (lm) | 700 |

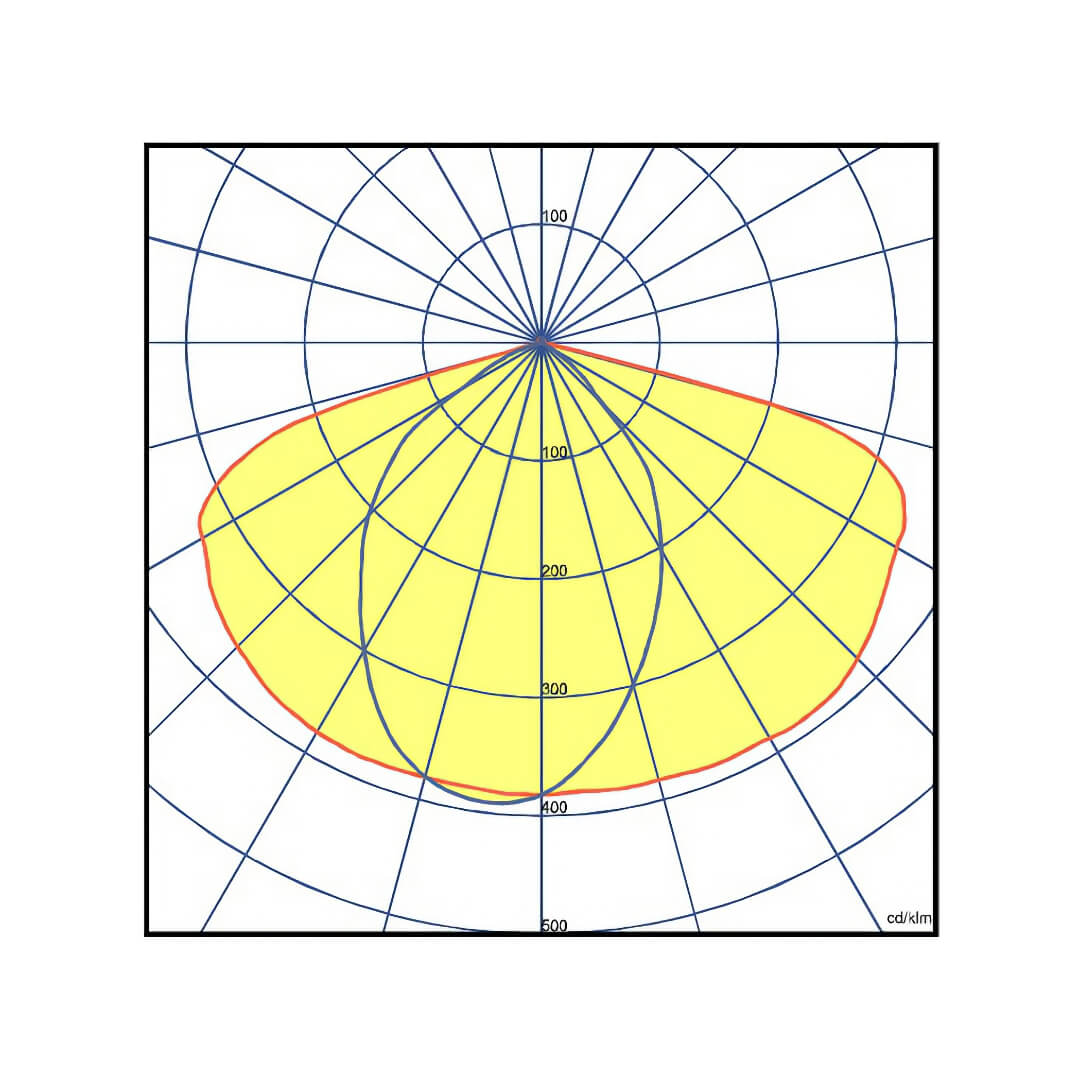

| Polar curve image | YES |
| Power consumption AC (VA) | 16 |
| Power consumption DC (mA / W) | 42 / 9 |
| Colour temperature (°K) | 5000 |
| Service life L80B20 | 50000 |
| Colour | RAL 9005 |
| Material | DIE-CAST ALUMINIUM |
| Operating temperature (°C) | -20 to +45 |
