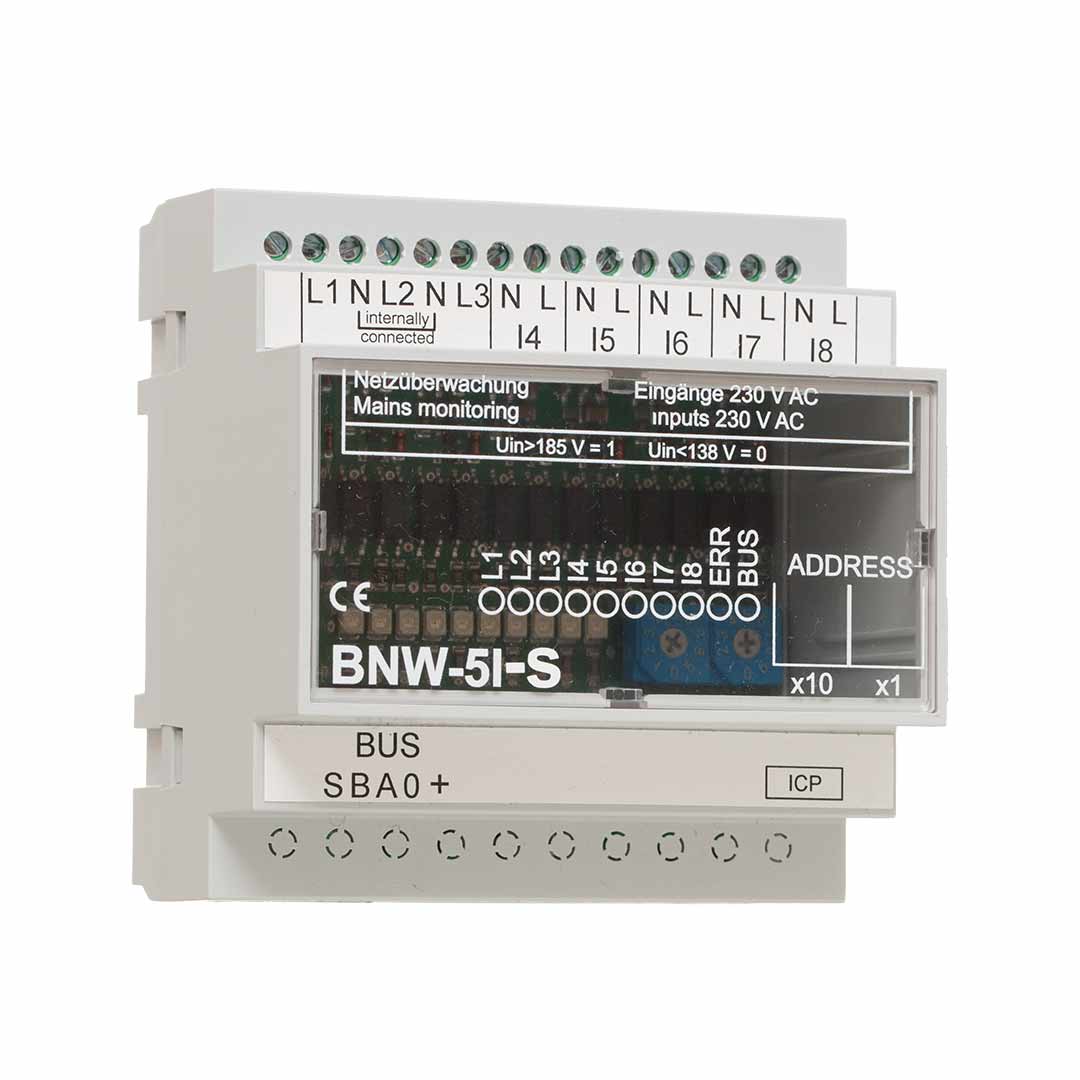

NRG+ BNW-5i-S Mains Monitoring Module

Three-phase addressable mains monitoring module with 5 additional inputs for DB monitoring.

The two status LEDs provide information about the operating status.

During normal operation of the system, the green LED flashes each time the module requests a bus signal (approx. every 100 ms).

The red LED lights up when the module itself is in an error state or when the bus is inactive.

The two rotary switches are used to set a unique address for each BNW-5i-S in the system (addresses 1 – 56).
