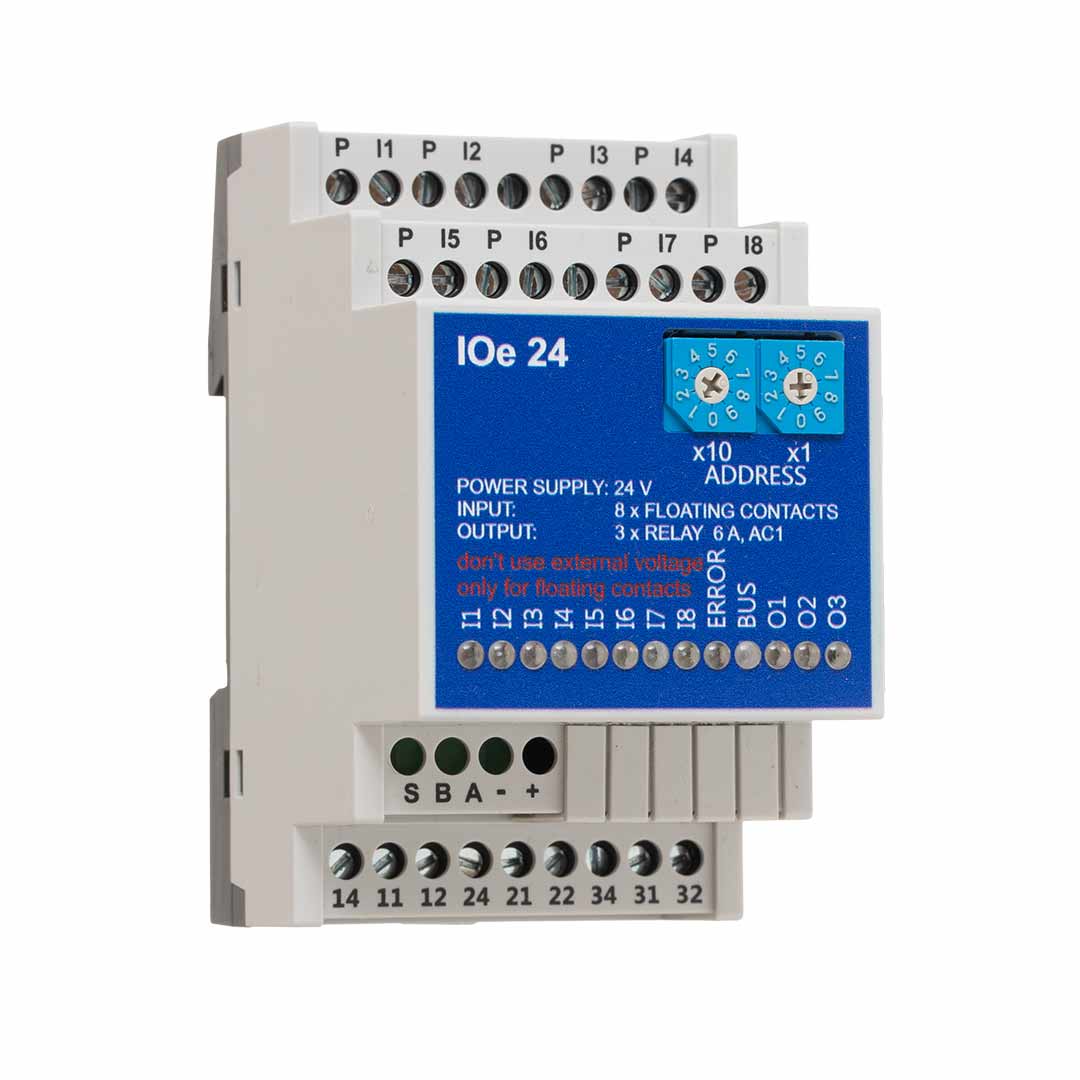

NRG+ IOe24 Light Switch Query Module

Light switch query module, each of the 8 digital input can be configured as a current loop function or to switch groups or individual luminaires on and off.

The IOe24 also has 3 digital outputs with potential-free changeover contacts.

The two status LEDs provide information about the operating status.

During normal operation of the system, the green LED flashes each time the module requests a bus signal (approx. every 100 ms).

The red LED lights up when the module itself is in an error state or when the bus is inactive.

The two rotary switches are used to set a unique address for each IOe24 in the system (addresses 1 – 56).
