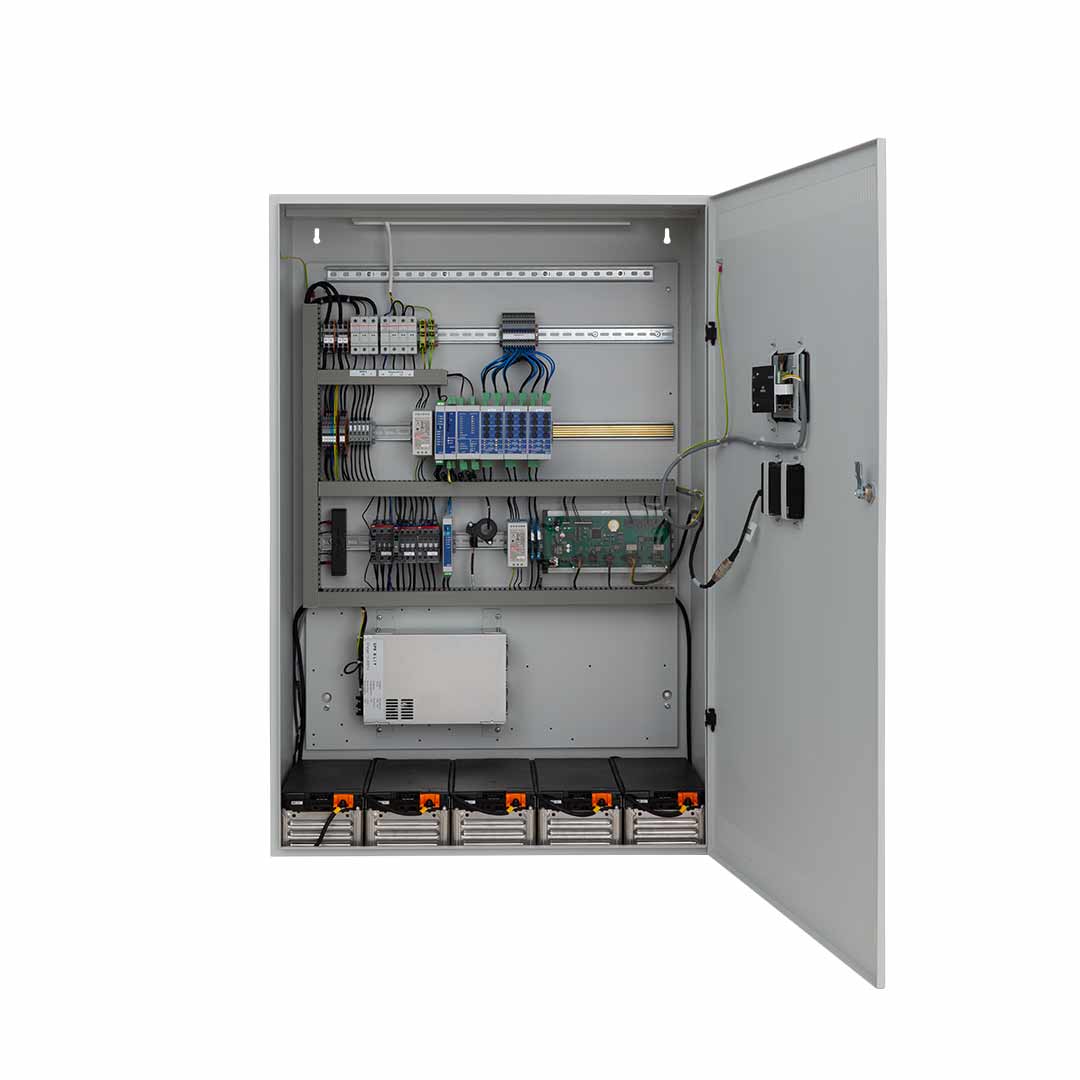

NRG+ CPS M60 37AH Li Central Power Supply System

System NRG+

Insulation class I

Compliance CE

Compliance UKCA

IP rating IP20

Mounting system Surface wall

Central Power Supply System (CPS) for emergency lighting.

230V AC/DC outgoing circuits with integrated monitoring and maintained and non-maintained functions.

NRG + CPS Li is equipped with lithium batteries.

User-friendly 7″ Touchscreen-Display, integrated Modbus interface.

Designed according to BS EN 50171, BS EN 62485-2, BS EN 62034.

Description

Each circuit for max. 20 luminaires
Single luminaire monitoring
8 switching inputs freely programmable (potential free)
8 relay outputs freely programmable 230 V / 2 A
Bus connection for substations or external modules USB interface for keyboard, mouse or USB memory stick
TCP / IP interface for networking or visualisations
Easy commissioning of the system via menu navigation
Switching of individual luminaires or groups of luminaires via switching inputs
Simple but powerful automatic luminaire search
Menu for recognising double addresses
Automatic test equipment and integrated test booklog
Supervision software up to 253 systems for visualisation and Controls
Charger with an external control unit with intelligent safety technology, BMS (Battery Management System)
High efficiency charging modules with temperature compensation
Up to 5 circuits for Substations

Weight	130 kg
Dimensions (D x W x H)	420 × 800 × 1200 mm
System	NRG+
Insulation class	I
Compliance	CE, UKCA
IP rating	IP20
Mounting system	Surface wall
Nominal input voltage (V)	1~N/PE 230 V 50 Hz / 3~N/PE 400 V 50 Hz
Nominal output voltage (V)	230 VAC / 216 VDC ± 10 %
Outgoing circuits	2 x 6 A 1380 W or 4 x 3 A 690 W (max. up to 15 output modules)
Autonomy and power according BS EN 50171	1 h max. 5861 W – 3 h max. 1954 W
Charging time (hours)	12
Colour	RAL 7035
Material	Galvanised and painted metal sheet
Interface	TCP / IP – MODBUS – USB
Cable entry	Above
Operating temperature (°C)	-10 to +50
Battery	NMC 5 x 44 V 37 Ah – 10 YEARS WARRANTY
