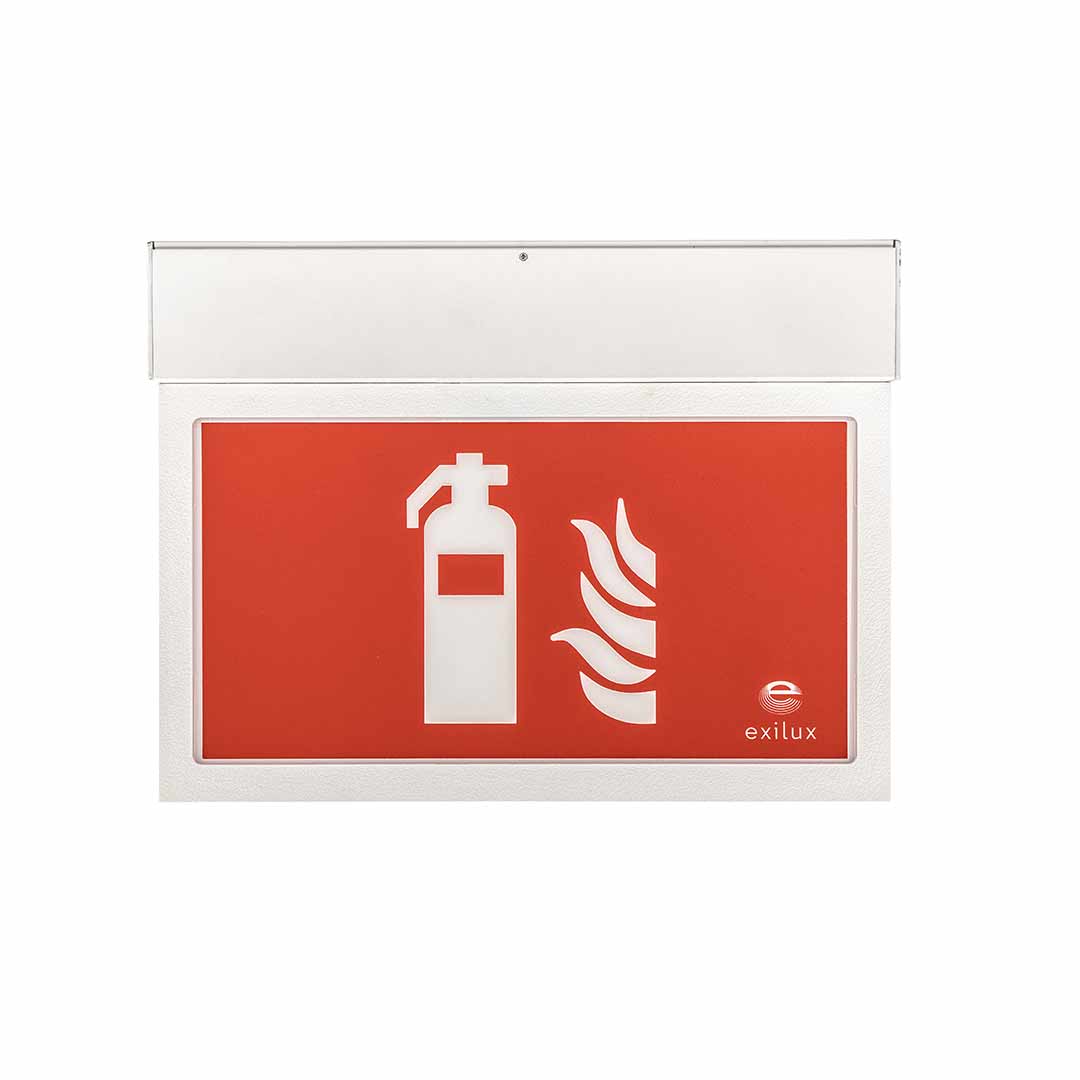

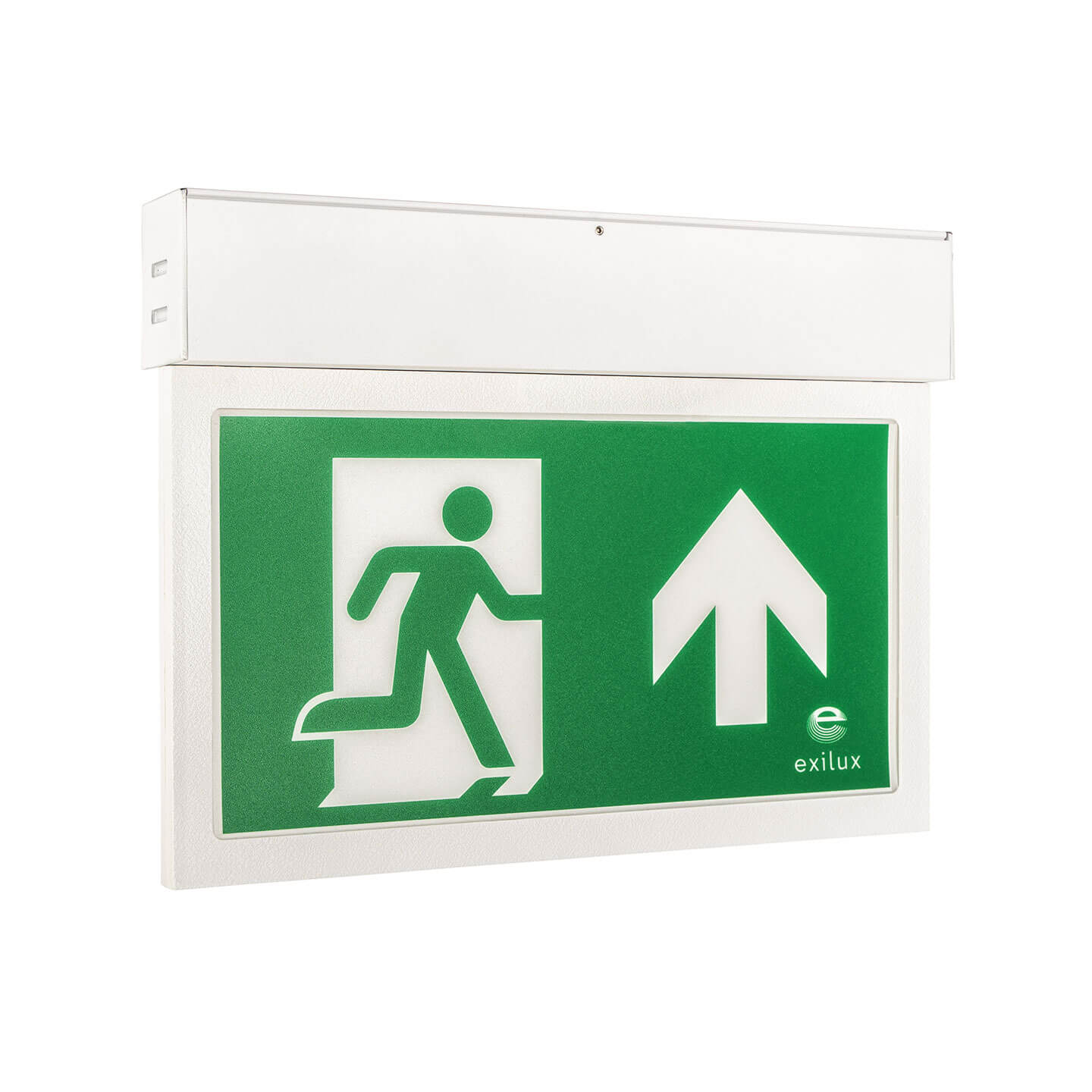

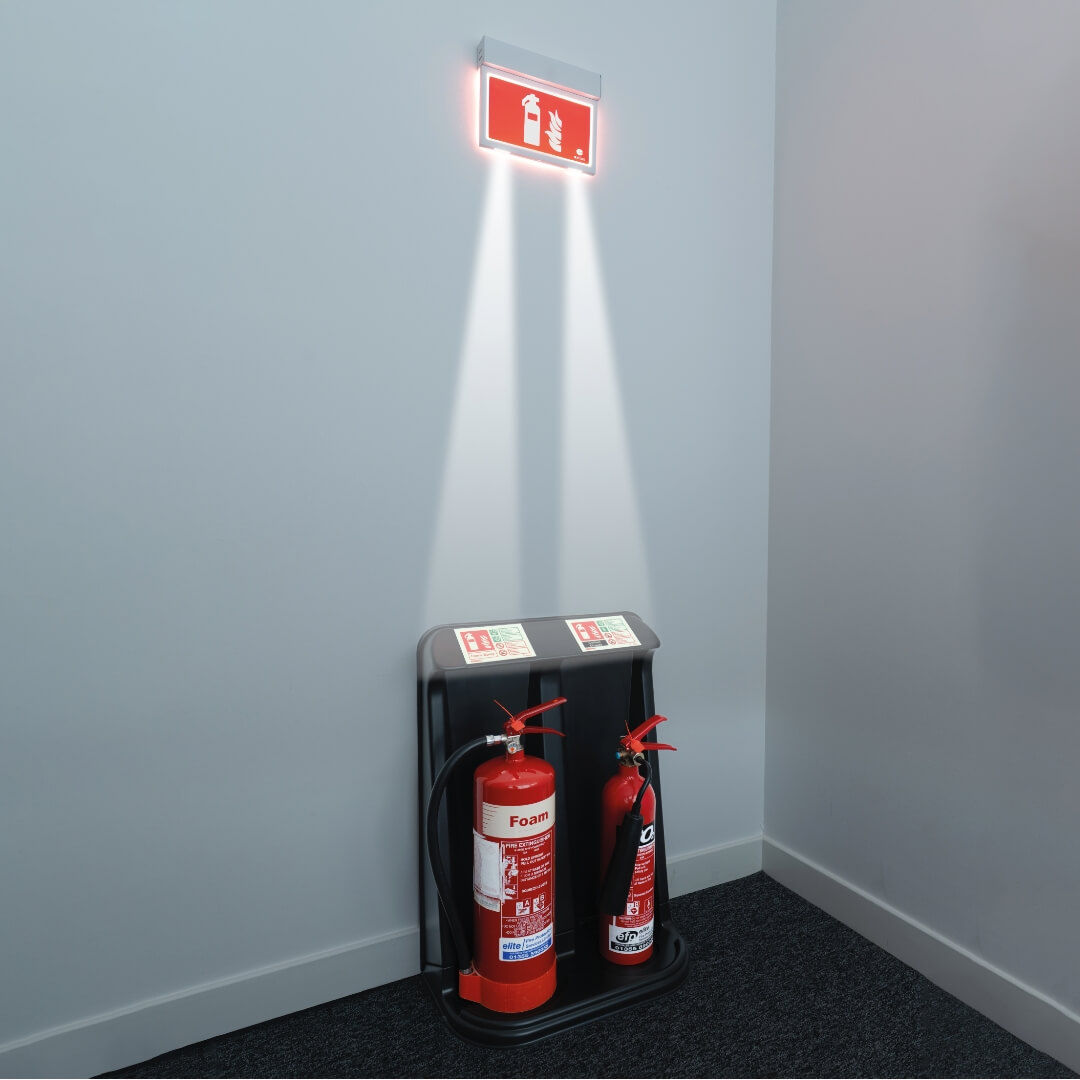

Exit sign and safety luminaire combined, with downlight element to illuminate in accordance with the EN 1838 requirement for 5 lx illuminance on safety devices, suitable for mounting on walls, ceilings and recessed.
Minimalist and modern design, easy installation thanks to quick-connect terminal blocks.
Luminaire is equipped with 2 W strip LED and 2 x 0,5 LED downlight element.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 1.15 kg |
|---|---|
| System | NRG+ |
| Insulation class | II |
| Compliance | CE, UKCA |
| IP rating | IP42 |
| IK rating | IK04 |
| Viewing distance | 32 m |
| EN 1838 | EN 1838 |
| Glow wire test | 850 °C – 30s |

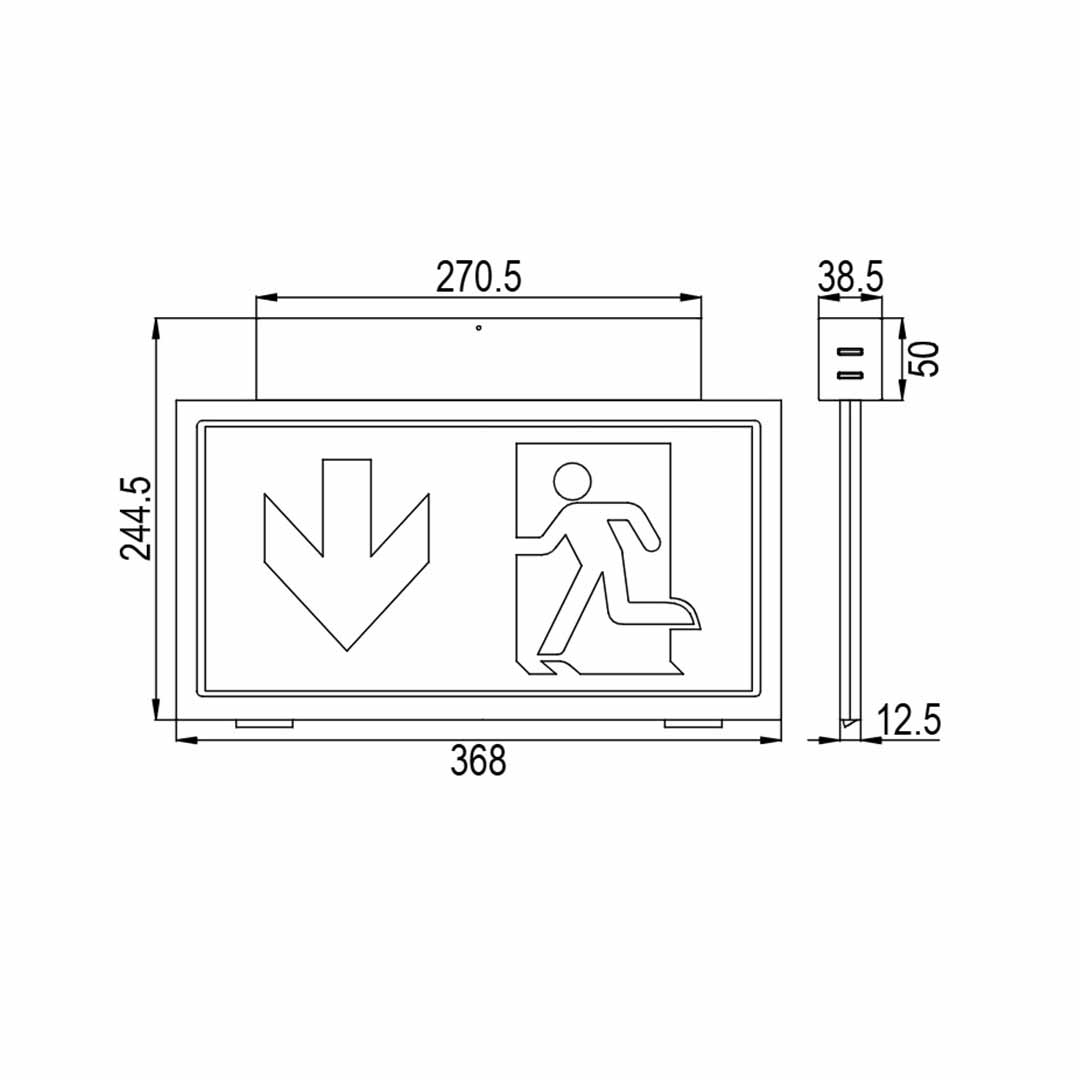

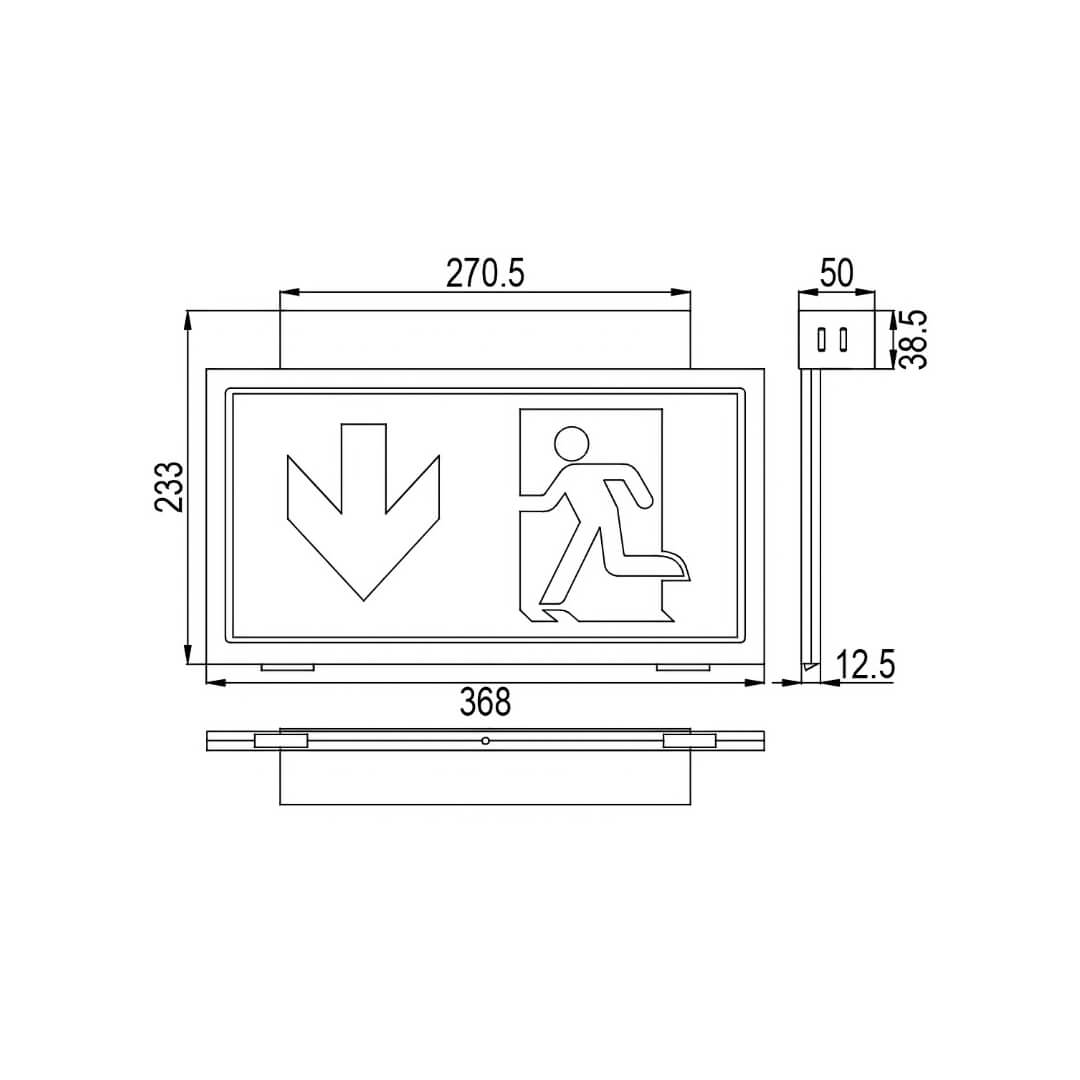

| Mounting exit sign | Recessed ceiling, Recessed wall, Surface ceiling, Surface wall, Suspended ceiling |
| Nominal input voltage (V) | 230 V 50/60 Hz – 220 V DC +25/-20 % |
| Nominal flux (lm) | 100 |

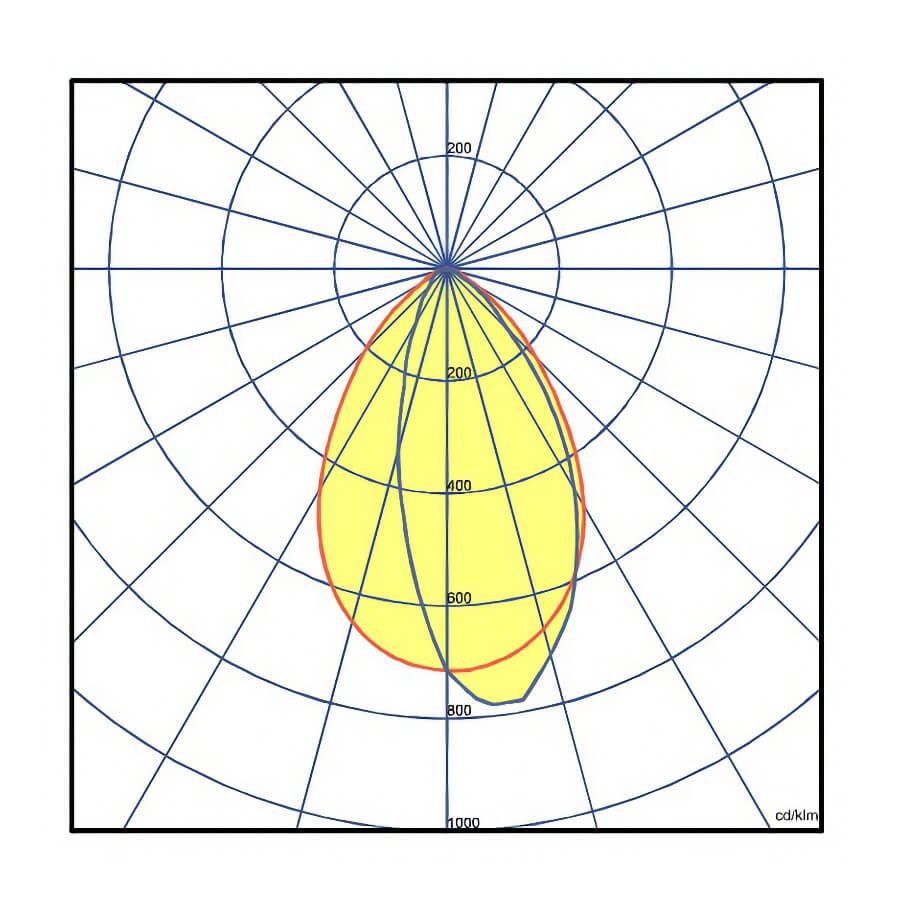

| Polar curve image | YES |
| Power consumption AC (VA) | 6.5 |
| Power consumption DC (mA / W) | 14 / 3.1 |
| Colour temperature (°K) | 5700 |
| Service life L80B20 | 50000 |
| Colour | RAL 9003 |
| Material | ALUMINIUM – PC |
| Operating temperature (°C) | -10 to +40 |
