Safety luminaire IP65-rated for high illumination.
Sturdy rectangular design with high-performance power LED.
Easy to install thanks to quick-connect terminal blocks.
Available with optic for escape route and wide area illumination.
Luminaire is equipped with 4 x 3 W power LED.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 0.8 kg |
|---|---|
| System | NRG+ |
| Insulation class | II |
| Compliance | CE, UKCA |
| IP rating | IP65 |
| IK rating | IK04 |
| EN 1838 | EN 1838 |
| Glow wire test | 850 °C – 30s |
| Mounting luminaire | Surface ceiling |
| Power consumption AC (VA) | 17 |
| Power consumption DC (mA / W) | 37 / 8 |

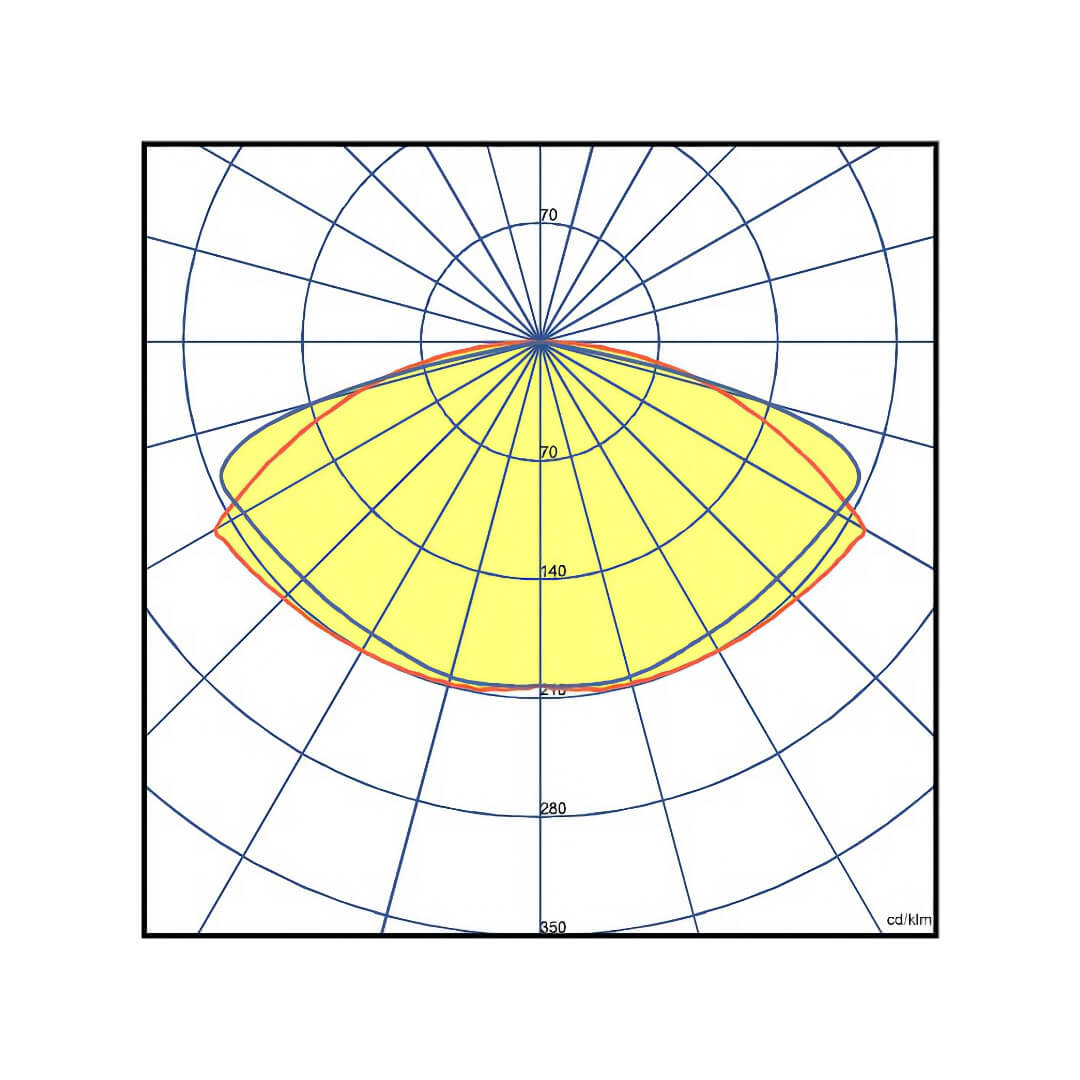

| Polar curve image | YES |
| Nominal input voltage (V) | 230 V 50/60 Hz – 220 V DC +25/-20 % |
| Nominal flux (lm) | 1000 |
| Colour temperature (°K) | 5000 |
| Service life L80B20 | 50000 |
| Colour | RAL 9003 |
| Material | PC |
| Operating temperature (°C) | -20 to +40 |
