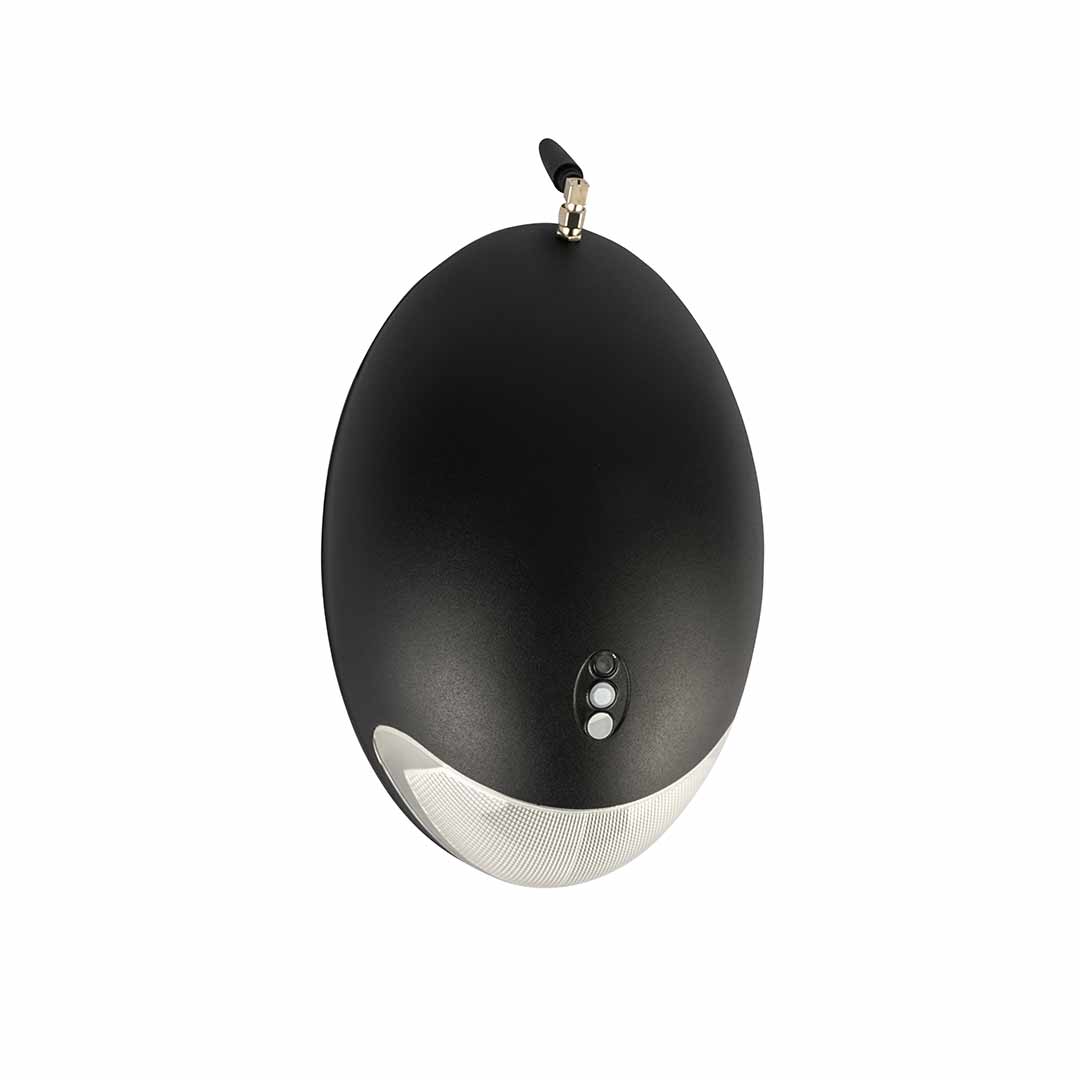

OVALUX IP65 NRG ZB WL 3H Safety Luminaire

System NRG ZB Wireless
Insulation class I
Compliance CE
Compliance UKCA
IP rating IP65
IK rating IK10
EN 1838 EN 1838
Glow wire test 960 °C - 30s
Mounting luminaire Surface wall
Warranty 5 Years
Warranty 10 Years
Environments Cold

Safety IP65-rated wall luminaire is suitable for indoor and outdoor use.

Part No. L21034 Categories: , Tag:

Description

Its robust, oval design has an IK10 rating and provides high-performance illumination.

The luminaire is equipped with 3 x 5 W power LED.

Exilux’s fully automatic self-testing NRG BUS or NRG ZB system complies with BS EN 62034 and is incorporated into all emergency lighting models.

It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.

Wireless Features

  • Type: Wireless MESH network
  • Operating frequency: 2.4 GHz
  • Max power: 10 mW
  • Compliant to RED Directive 2014/53/EU
  • Compliant to European standards: EN 300 328, EN 301 489-1, EN 301 489-3

Additional information

Weight 1.2 kg
Nominal input voltage (V)

230 V 50/60 Hz

System

NRG ZB Wireless

Insulation class

I

Compliance

CE, UKCA

IP rating

IP65

IK rating

IK10

EN 1838

EN 1838

Glow wire test

960 °C – 30s

Mounting luminaire

Surface wall

Warranty

5 Years, 10 Years

Environments

Cold

Emergency duration (h)

3

Battery

LiFePO4 6.4 V 3.2 Ah

Nominal flux (lm)

620

Polar curve image

YES

Power consumption AC (W)

Max. 11

Charging times (h)

24

Colour temperature (°K)

4000

Service life L80B20

50000

Colour

RAL 9017

Material

DIE-CAST ALUMINIUM – PC

Operating temperature (°C)

-30 to +45

  • L21034 OVALUX IP65 NRG ZB WL 3H LDT photometric data (ZIP) - 32.85 KB
  • EG-EU Declaration of Conformity NRG ZB L21034 (PDF) - 263.34 KB
  • UKCA Declaration of Conformity NRG ZB L21034 (PDF) - 255.11 KB
