Description

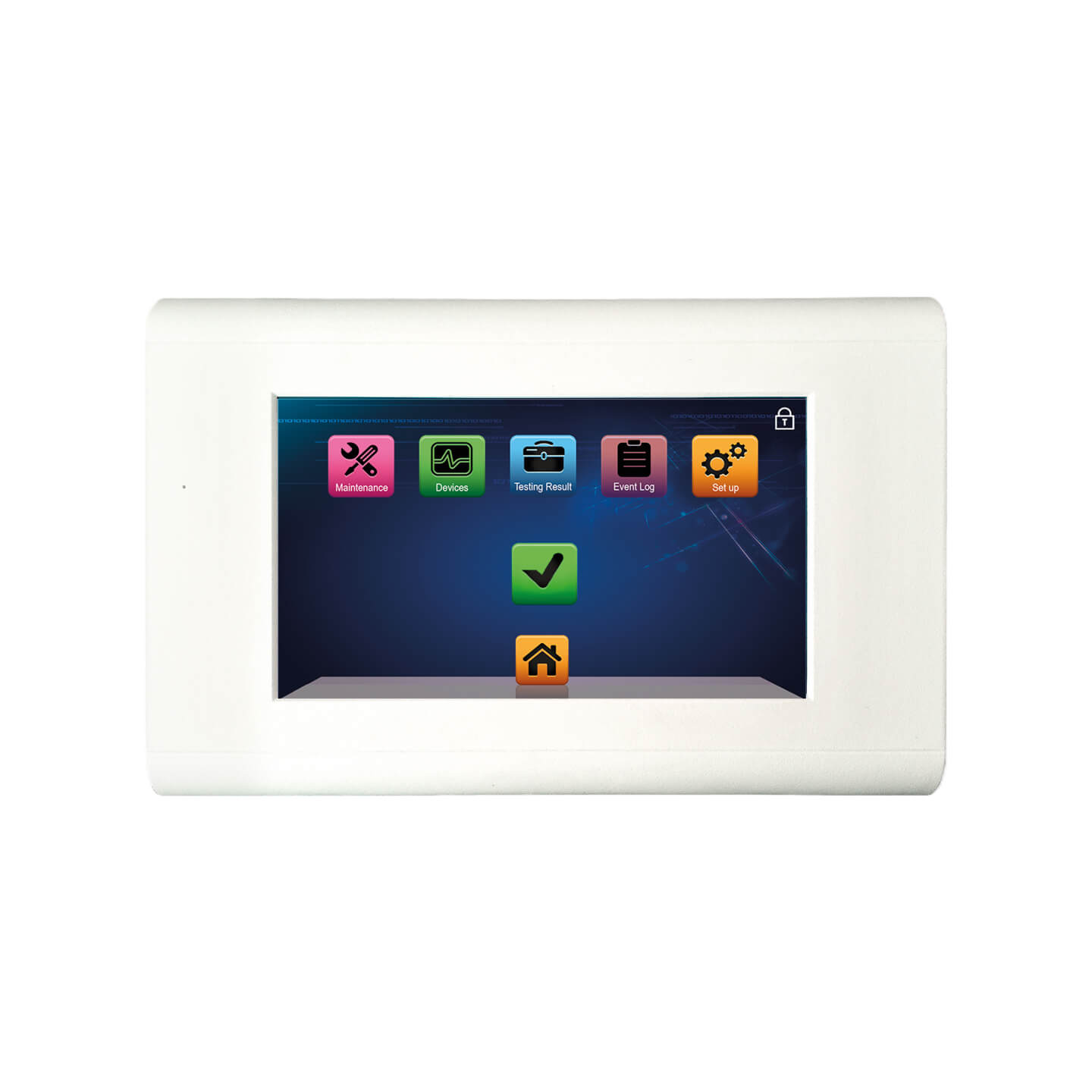

The NRG ZB CU WIRELESS control unit makes the installation, monitoring and maintenance of exit and emergency luminaire installations simple yet effective. The system uses intuitive programming and internationally recognised icons to guide the user through the process of ensuring egress direction. Life safety escape information readiness is assured. Testing is securely and discreetly performed. Faults and failures are immediately notified to the relevant personnel. The system can operate as a single controller or be networked and linked to as many devices as required. It is not bound by building, city, state or country. It is also simple enough to be monitored by staff with minimal training, on a “ONE GLANCE at ONE SCREEN” basis, irrespective of how big the global network may have grown. The control panel itself will operate without the need for a permanent connection to a PC or the internet. This is an optional upgrade to traditional services, providing the next level of flexibility, automation and control. It complies with BS EN 50172 and BS EN 62034. It stores test results for up to five years. Test reports are accessible immediately to ensure compliance with emergency lighting regulations.
Wireless Features
- Type: Wireless MESH network
- Operating frequency: 2.4 GHz
- Max power: 10 mW
- Compliant to RED Directive 2014/53/EU
- Compliant to European standards: EN 300 328, EN 301 489-1, EN 301 489-3
