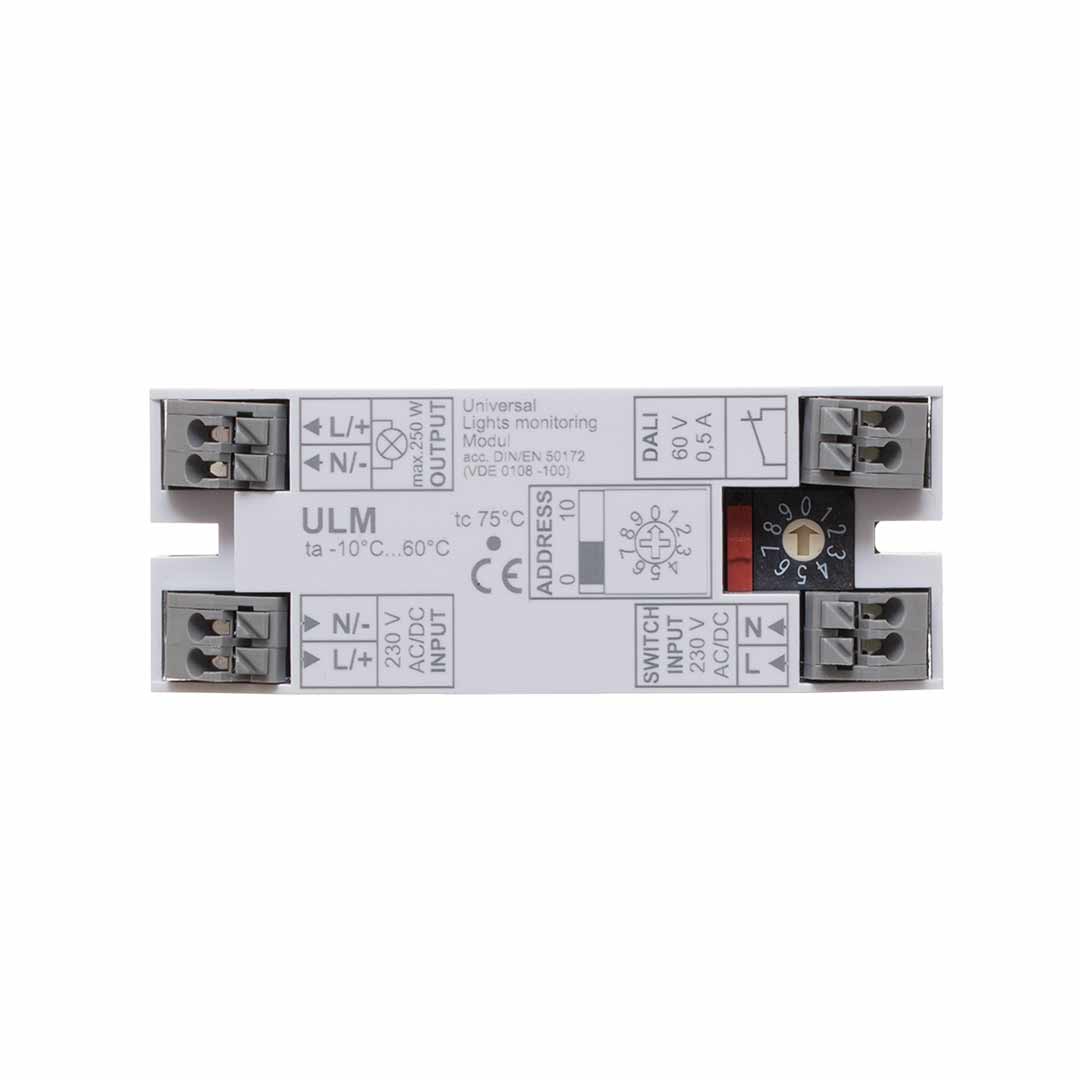

Addressable monitoring module suitable for use with DALI and regular electronic ballasts or LED drivers.
Each outgoing circuit of the LPS or CPS can handle a maximum of 20 ULM modules.
The ULM module can be maintained and non-maintained mode for freely programmable mixed operation of the switching modes per luminaire on one circuit.
Universal monitoring module for loads from 2.5 to 250 W. Designed according to BS EN 60598-2-22.
| Weight | 0.065 kg |
|---|---|
| Dimensions (D x W x H) | 20 × 30 × 78 mm |
| System | NRG+ |
| Insulation class | II |
| Compliance | CE, UKCA |
| IP rating | IP20 |
| Mounting system | Built-in |
| Nominal input voltage (V) | 230 VAC / 216 VDC ± 15 % |
| Switch input | 230 VAC |
| Max. connectable load and max. inrush | 1 to 250 W – Max. 125 A 200 μs |
| Colour | RAL 9003 |
| Material | PC |
| Operating temperature (°C) | -10 to +50 |
