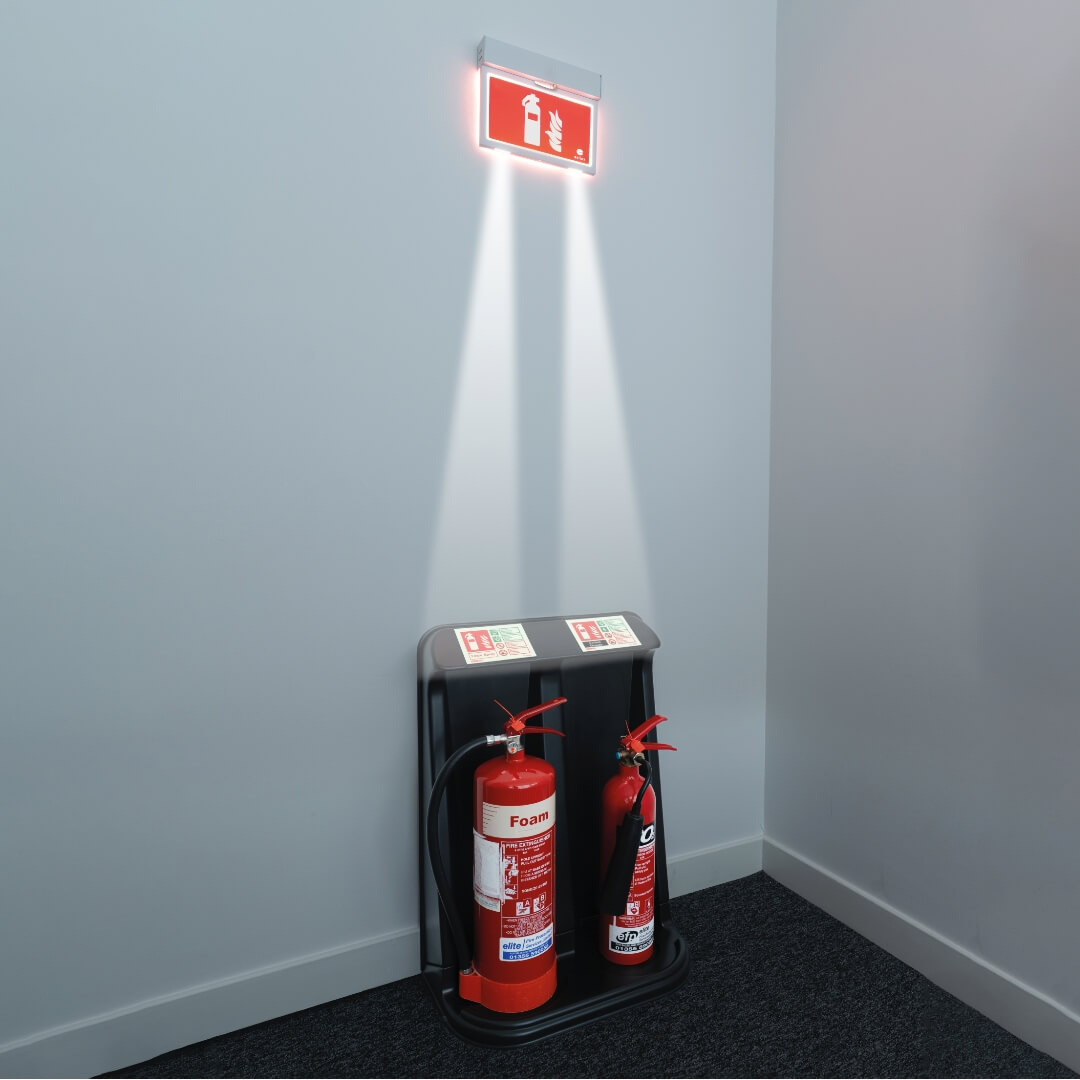

Exit sign and safety luminaire combined, with downlight element to illuminate in accordance with the EN 1838 requirement for 5 lx illuminance on safety devices, suitable for mounting on walls, ceilings and recessed.
Minimalist and modern design, battery pack replacement and installation are easy thanks to quick-connect terminal blocks. Luminaire is equipped with 2 W strip LED and 2 x 0,5 LED downlight element .
Exilux’s fully automatic self-testing NRG BUS or NRG ZB system complies with BS EN 62034 and is incorporated into all emergency lighting models.
It meets the requirements of the relevant harmonised European standards and BS EN 60598-1 and BS EN 60598-2-22.
| Weight | 1.3 kg |
|---|---|
| Nominal input voltage (V) | 230 V 50/60 Hz |
| System | NRG BUS DALI 2 |
| Insulation class | II |
| Compliance | CE, UKCA |
| IP rating | IP42 |
| IK rating | IK04 |
| EN 1838 | EN 1838 |
| Glow wire test | 850 °C – 30s |

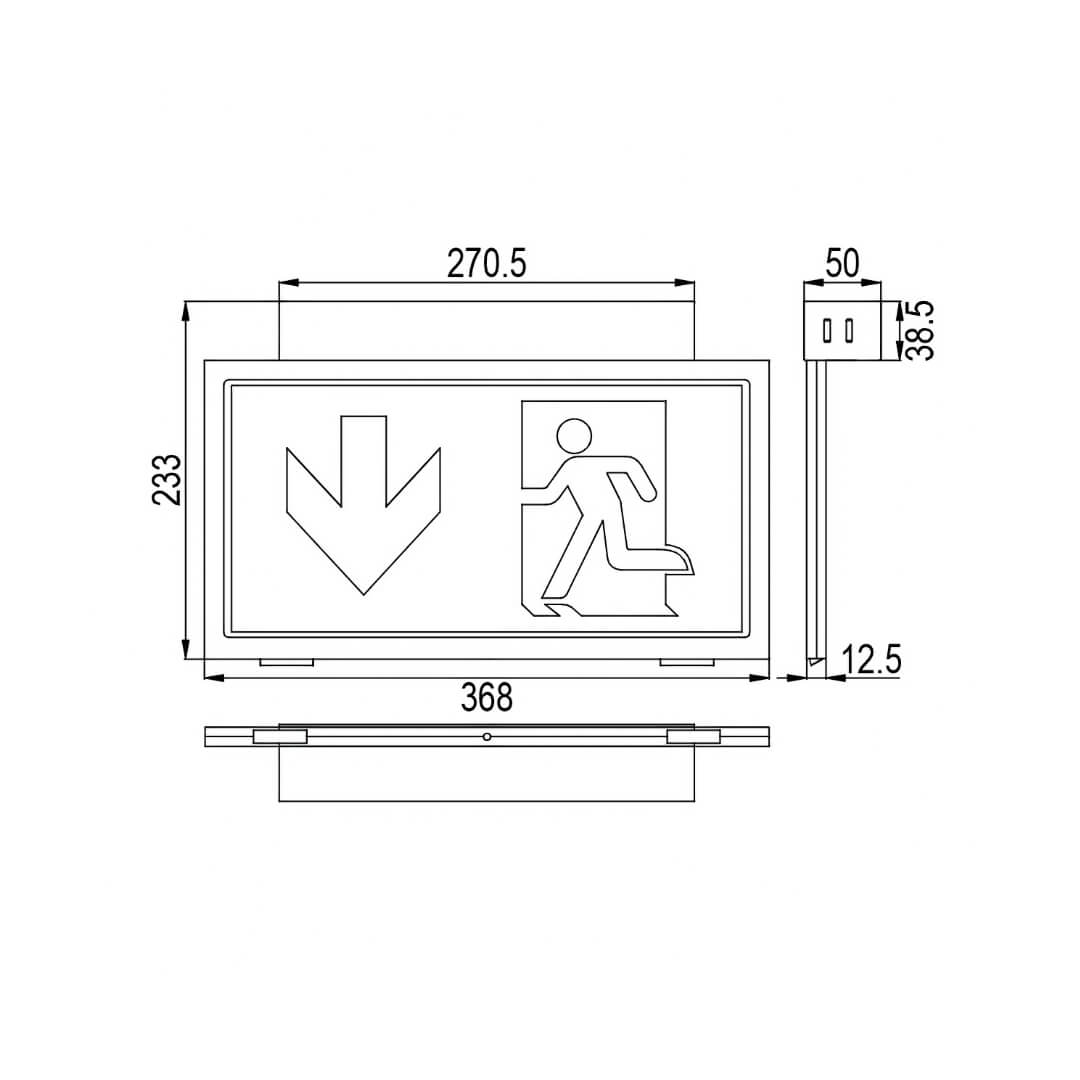

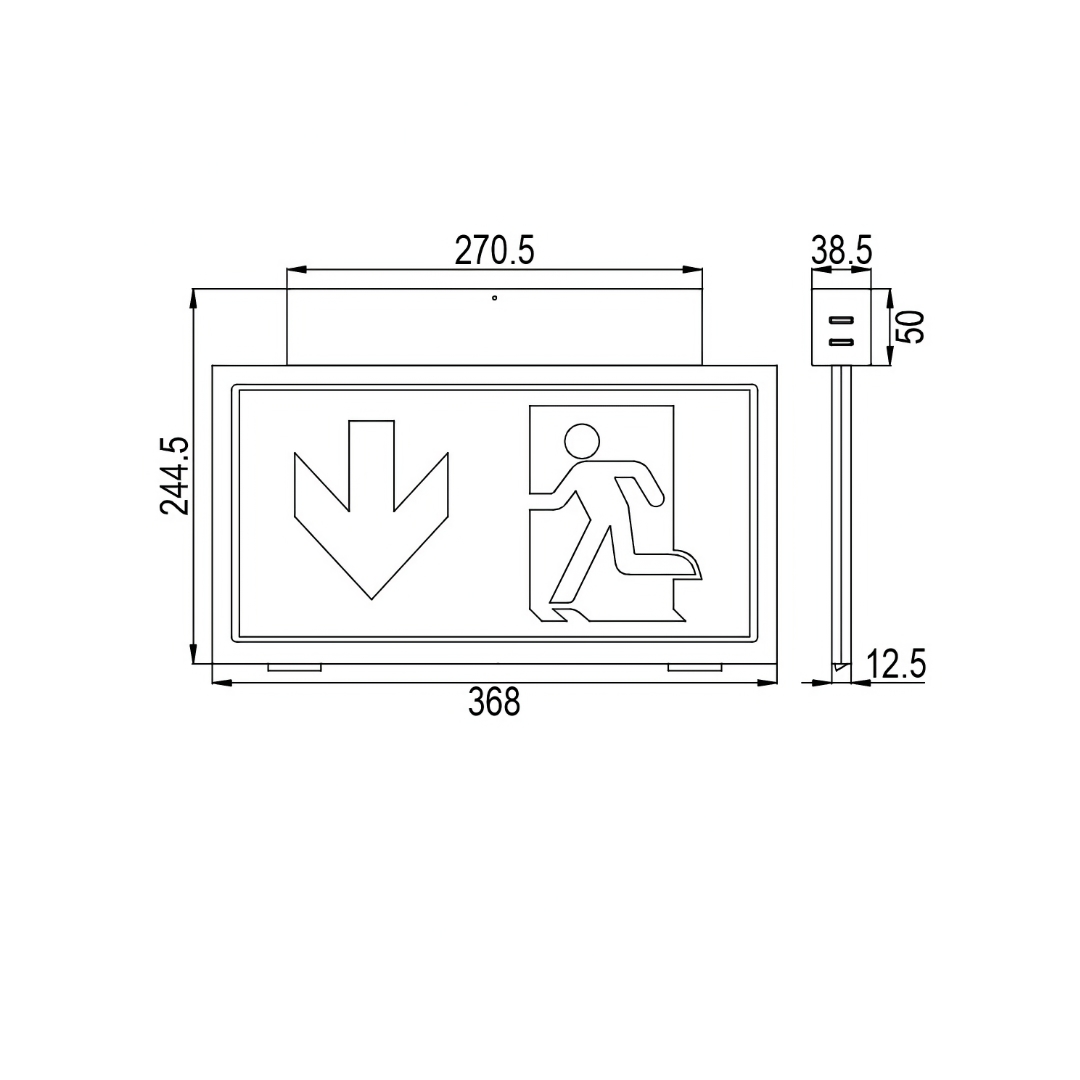

| Mounting exit sign | Recessed ceiling, Recessed wall, Surface ceiling, Surface wall, Suspended ceiling |
| Mounting luminaire | Recessed ceiling, Recessed wall, Surface ceiling, Surface wall, Suspended ceiling |
| Warranty | 5 Years, 10 Years |
| Nominal flux (lm) | 100 |

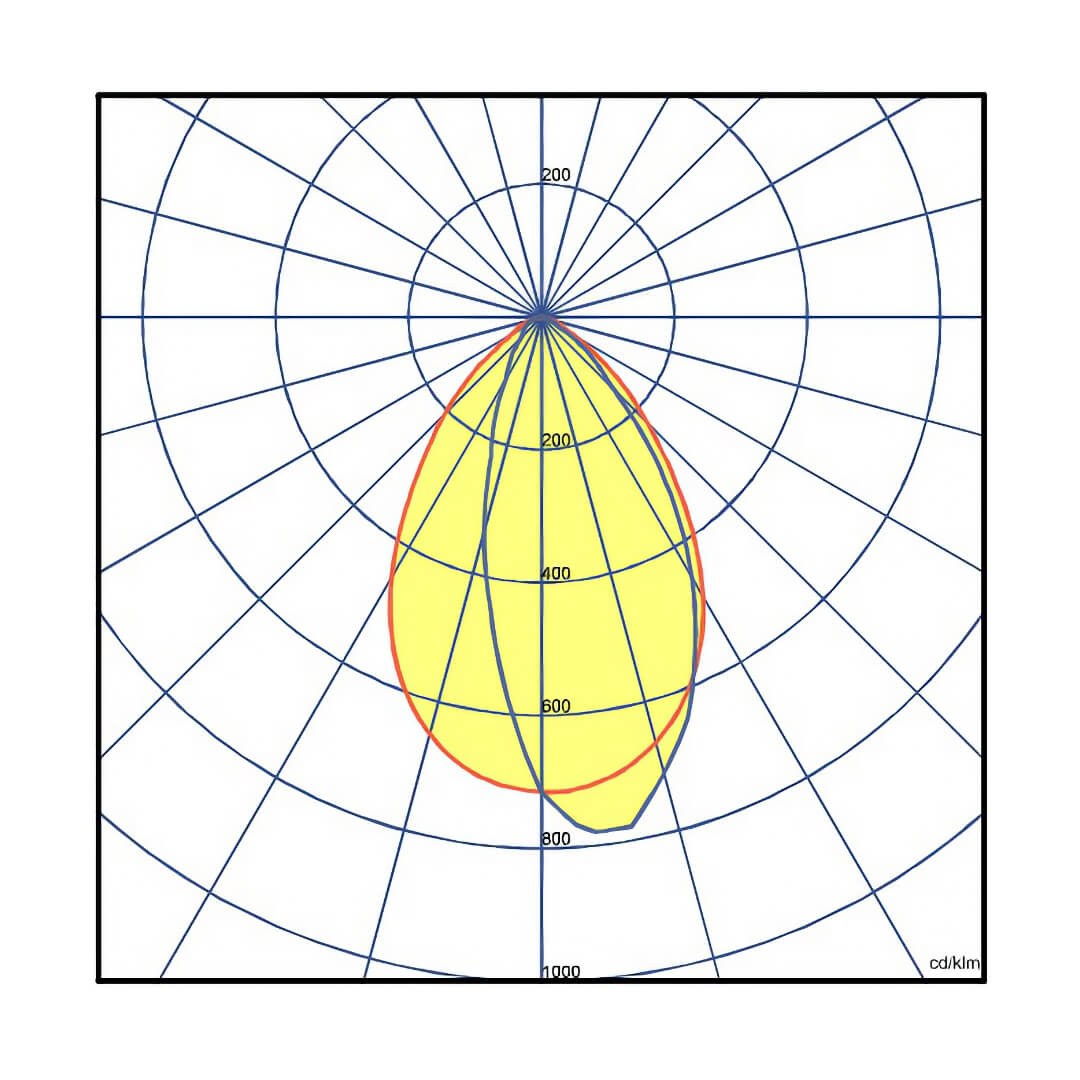

| Polar curve image | YES |
| Emergency duration (h) | 3 |
| Power consumption AC (W) | Max. 7 |
| Battery | LiFePO4 3.2 V 4.5 Ah |
| Charging times (h) | 24 |
| Mode of operation | Maintained, Non-maintained |
| Colour temperature (°K) | 5700 |
| Service life L80B20 | 50000 |
| Colour | RAL 9003 |
| Material | ALUMINIUM – PC |
| Operating temperature (°C) | 0 to +45 |
